HPE Networking Instant On Switch 26p Gigabit 2p SFP 1430 R8R50A
Popis a parametry
HPE Networking Instant On Switch 26p Gigabit 2p SFP 1430 R8R50A
R8R50A HPE Networking Instant On Switch 26p Gigabit 2p SFP 1430

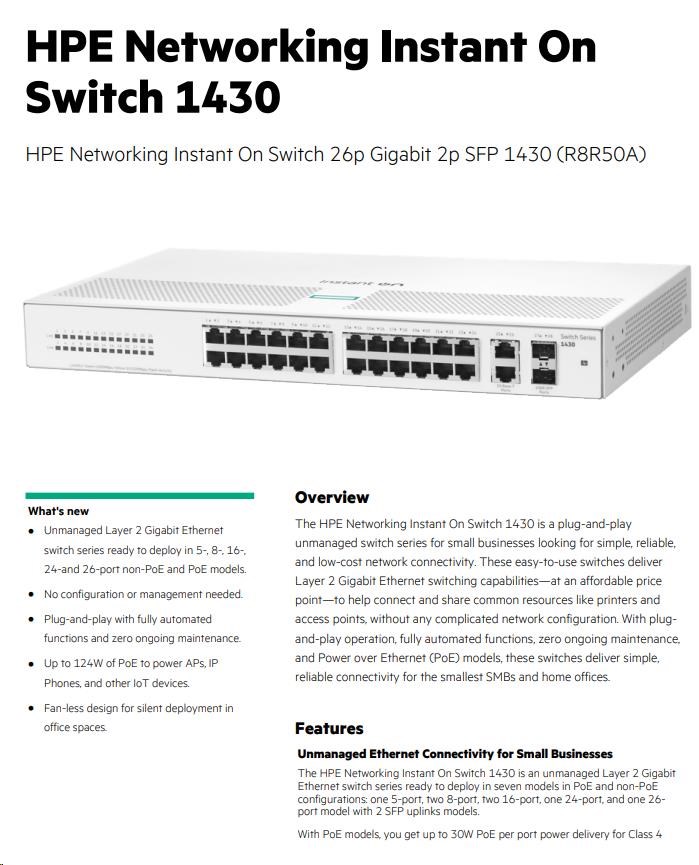

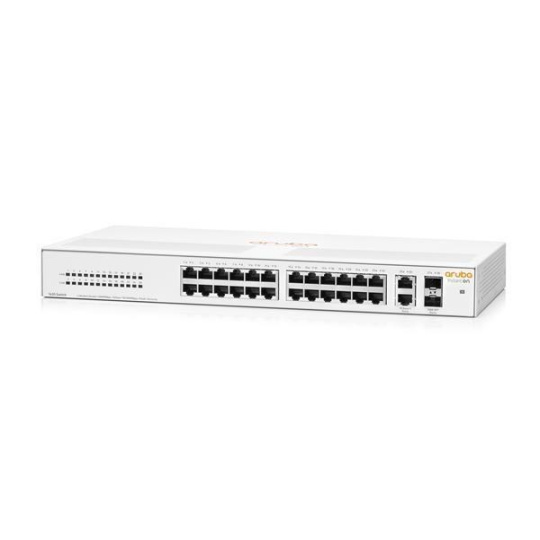

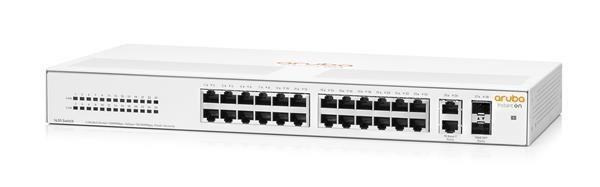

HPE Networking Instant On Switch — 1430 Series (R8R50A)
26× Gigabit RJ-45 + 2× 1GbE SFP — Unmanaged switch for small businesses and home offices.

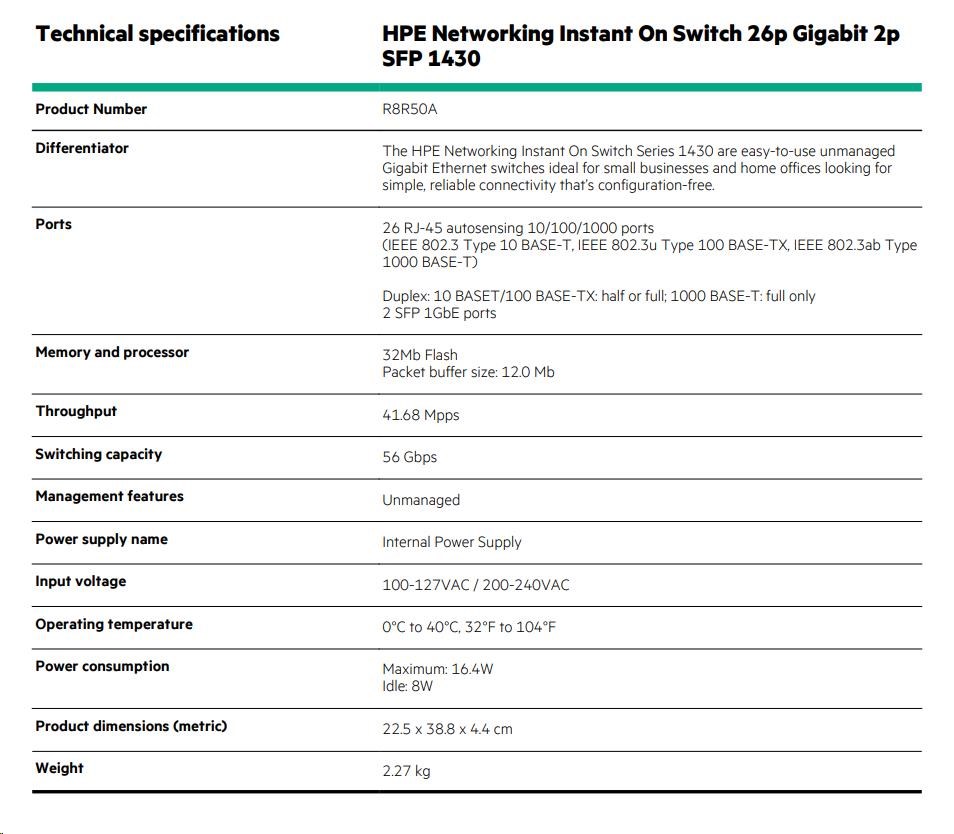

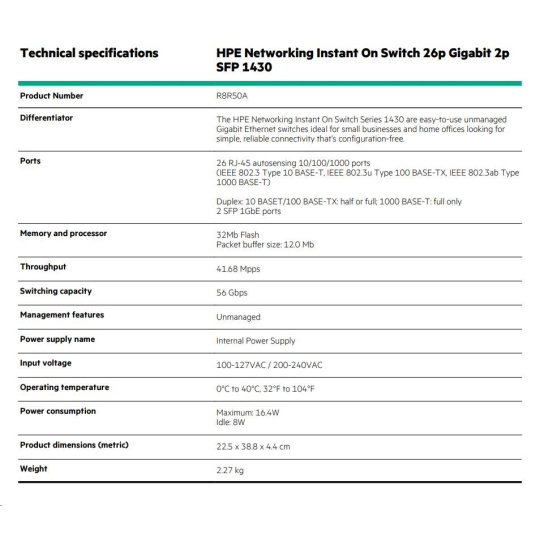

Product summary
| Product number | R8R50A |
|---|---|
| Model | HPE Networking Instant On 1430 — 26p Gigabit + 2 SFP |
| Differentiator | Unmanaged, easy-to-use Gigabit Ethernet switch — simple, reliable, configuration-free connectivity for small businesses and home offices. |
Ports
| RJ-45 ports | 26 × autosensing 10/100/1000 Mbps (IEEE 802.3, 802.3u, 802.3ab) |
|---|---|
| SFP ports | 2 × 1GbE SFP |
| Duplex | 10/100 Mbps: half or full duplex; 1000 Mbps: full duplex only |
Performance & memory
| Flash memory | 32 MB |
|---|---|
| Packet buffer size | 12.0 Mb |
| Throughput | 41.68 Mpps |
| Switching capacity | 56 Gbps |
Management
| Management | Unmanaged (plug-and-play) |
|---|

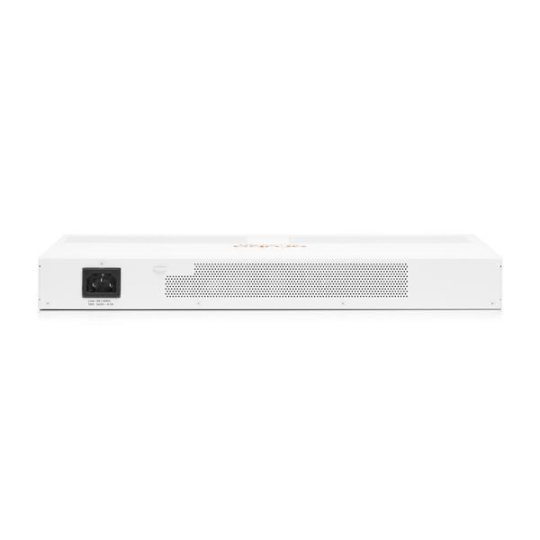

Power
| Power supply | Internal |
|---|---|
| Input voltage | 100–127 VAC / 200–240 VAC |
| Power consumption | Maximum: 16.4 W • Idle: 8 W |
Environmental
| Operating temperature | 0°C to 40°C (32°F to 104°F) |
|---|
Physical
| Dimensions (W × D × H) | 22.5 × 38.8 × 4.4 cm |
|---|---|
| Weight | 2.27 kg |
Notes
Specifications are provided for documentation purposes. Confirm country-specific power input requirements and regulatory approvals with official HPE product resources before deployment.
ParametryPorovnání
Maximální počet portů
26
Provedení
Desktop
Provedení
Rack mounted 19"
Technologie
Gigabit ethernet + Gigabit optika
Management
Ne
Ventilátor
Ne
Přenosová rychlost LAN (Mb/s)
23
Funkce
QoS (Quality of service)
Funkce
L2
Počet portů LAN
26,000000000
Maximální počet portů
26,000000000
Počet SFP portů
2,000000000
