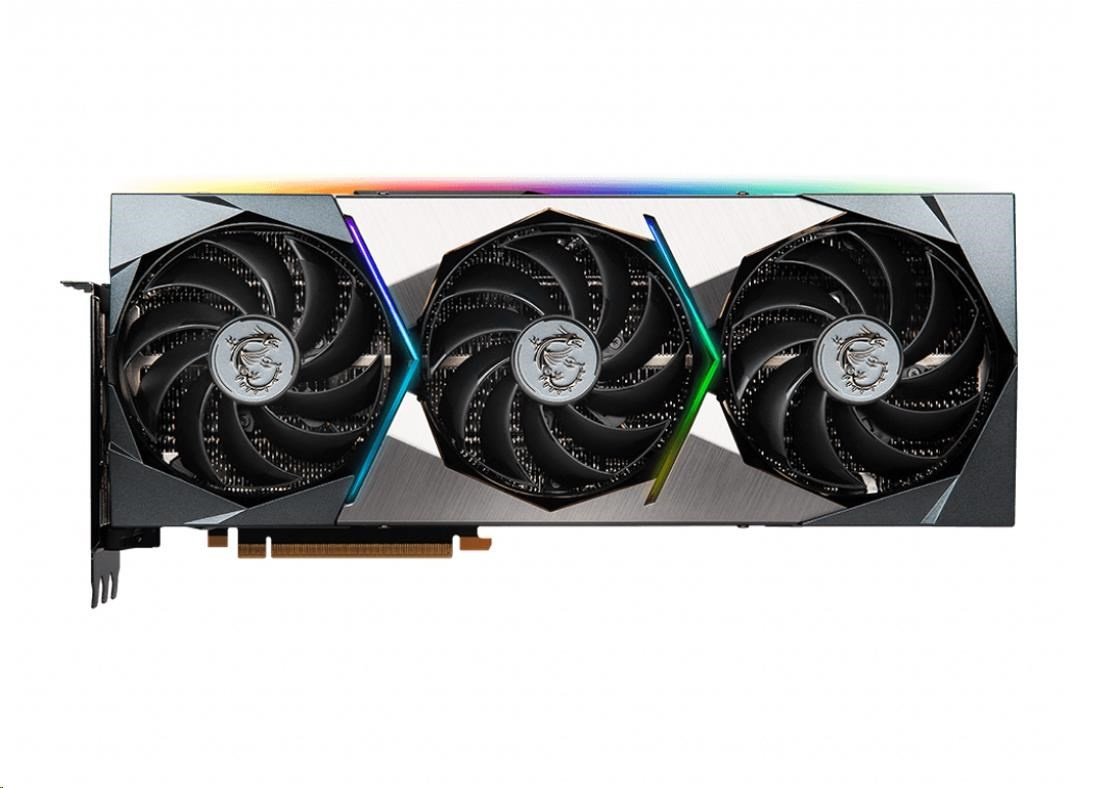

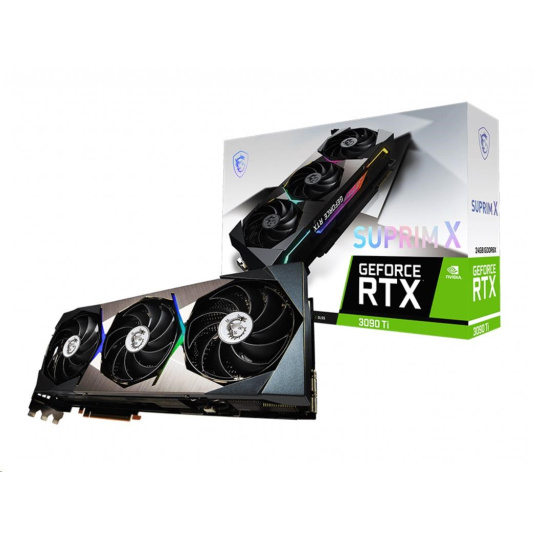

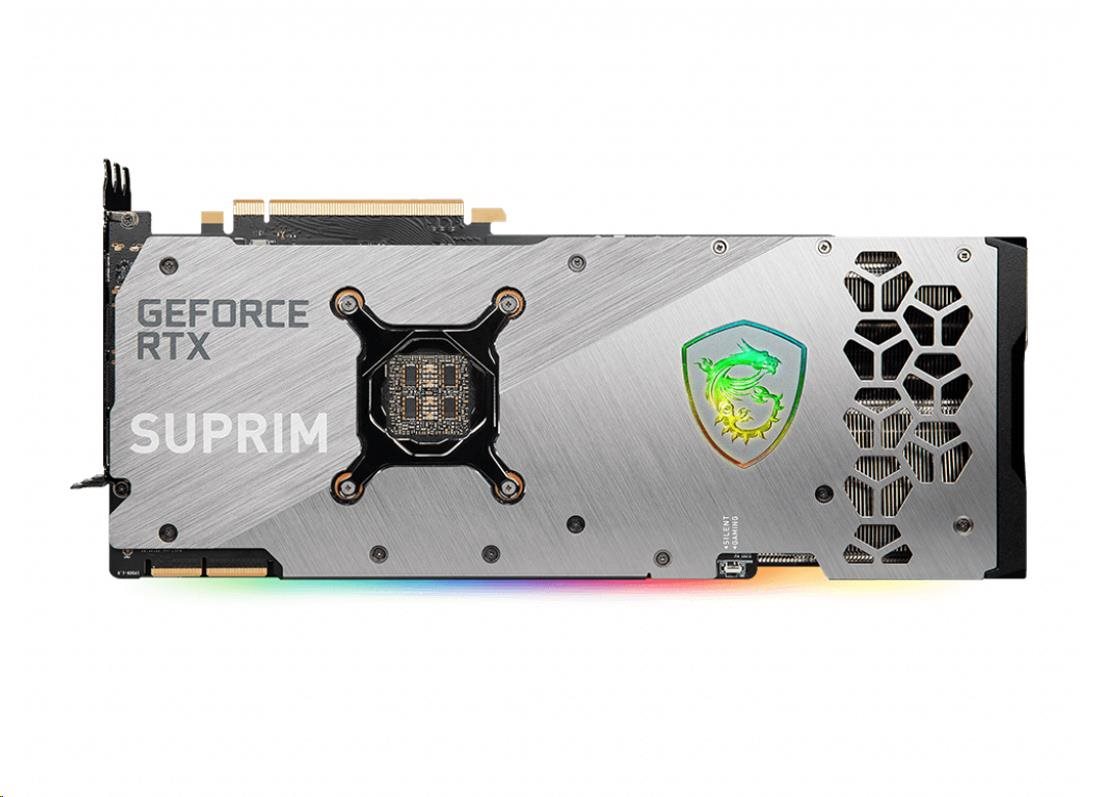

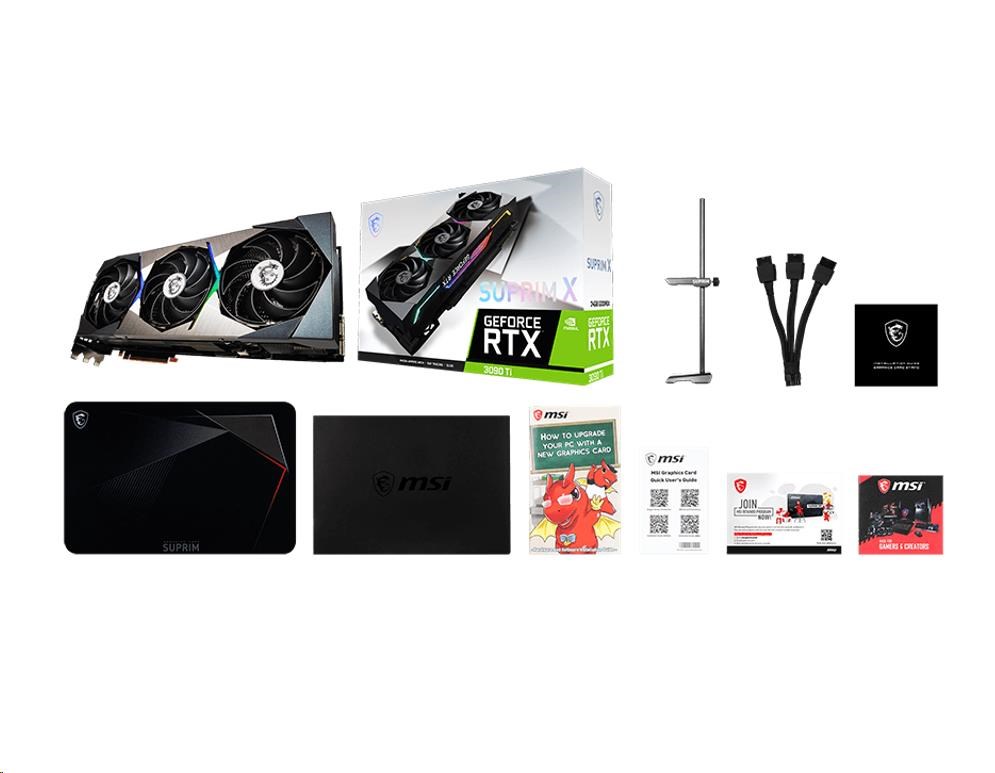

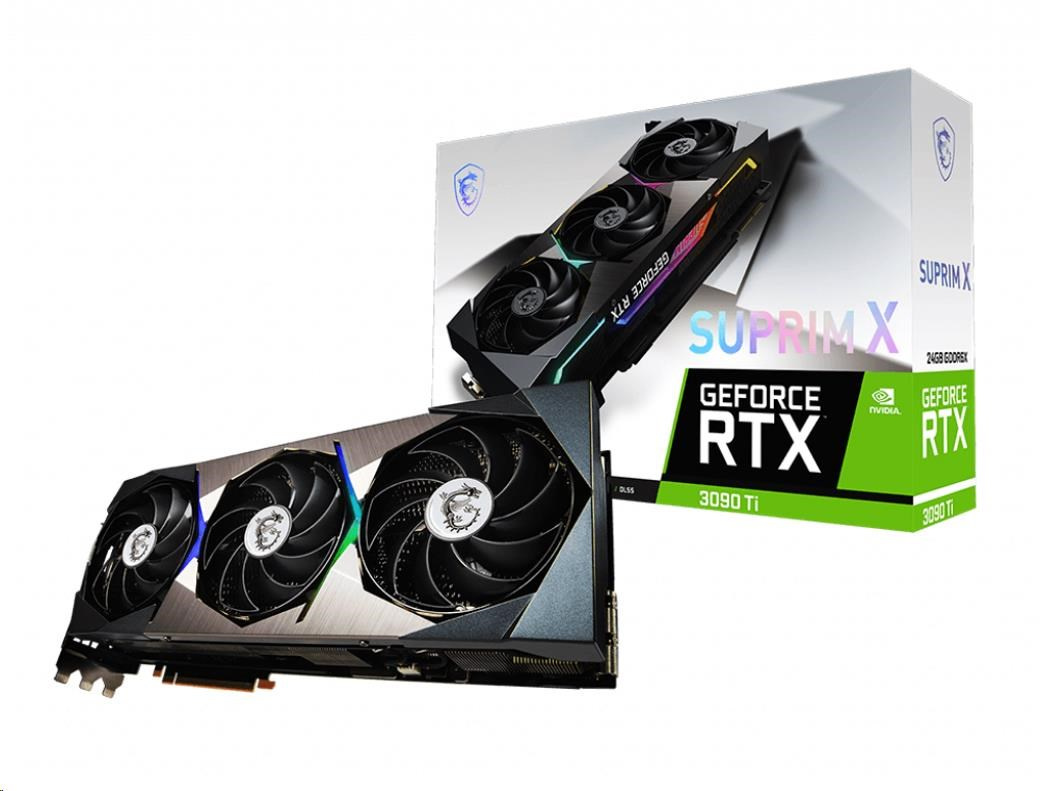

GeForce RTX 3090 Ti SUPRIM X 24G

The GeForce RTX™ 3090 Ti is colossally powerful in every way, giving you a whole new tier of performance. It’s powered by the NVIDIA Ampere architecture, which doubles down on ray tracing and AI performance with enhanced RT Cores, Tensor Cores, and new streaming multiprocessors.

Boost Clock / Memory Speed

• 1950 MHz (GAMING & SILENT Mode) / 21 Gbps
• 24GB GDDR6X
• DisplayPort x 3 (v1.4a)
• HDMI x 1 (2.1) (Supports 4K 120Hz HDR, 8K 60Hz HDR and Variable Refresh Rate as specified in HDMI 2.1)

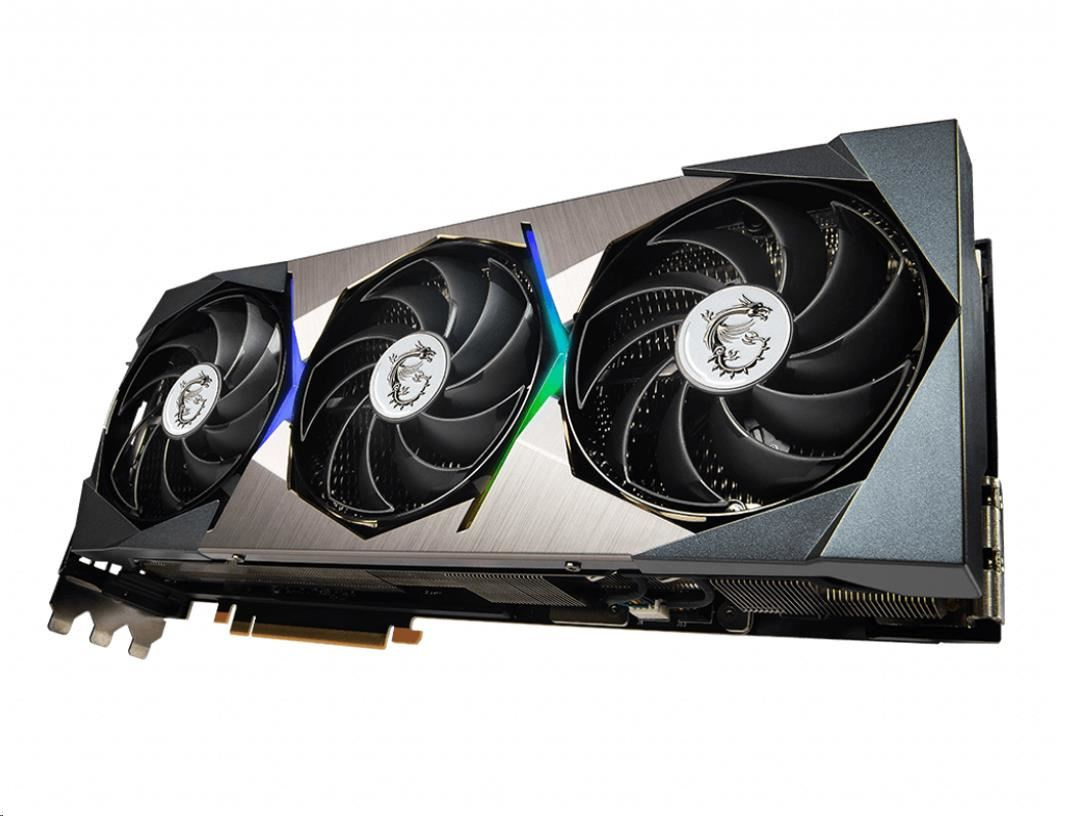

TRI FROZR 2S Thermal Design

• TORX Fan 4.0: A masterpiece of teamwork, fan blades work in pairs to create unprecedented levels of focused air pressure.
• Core Pipe: Precision-machined heat pipes ensure max contact to the GPU and spread heat along the full length of the heatsink.
• Airflow Control: Don't sweat it, Airflow Control guides the air to exactly where it needs to be for maximum cooling.
• Copper Baseplate: A solid nickel-plated copper baseplate transfers heat from the GPU and memory modules to all the heatpipes.

Dual BIOS

• Dual BIOS gives you the choice to prioritize for full performance in GAMING mode or low noise in SILENT mode.

MSI Center

• The exclusive MSI Center software lets you monitor, tweak and optimize MSI products in real-time.

Mystic Light

• Controls lighting for both MSI and compatible third-party RGB products.

MODEL NAME

GeForce RTX™ 3090 Ti SUPRIM X 24G

GRAPHICS PROCESSING UNIT

NVIDIA® GeForce RTX™ 3090 Ti

INTERFACE

PCI Express® Gen 4

CUDA® CORES

10752 Units

CORE CLOCKS

Extreme Performance: 1965 MHz (MSI Center)
Boost: 1950 MHz (GAMING & SILENT Mode)

MEMORY SPEED

21 Gbps

MEMORY

24GB GDDR6X

MEMORY BUS

384-bit

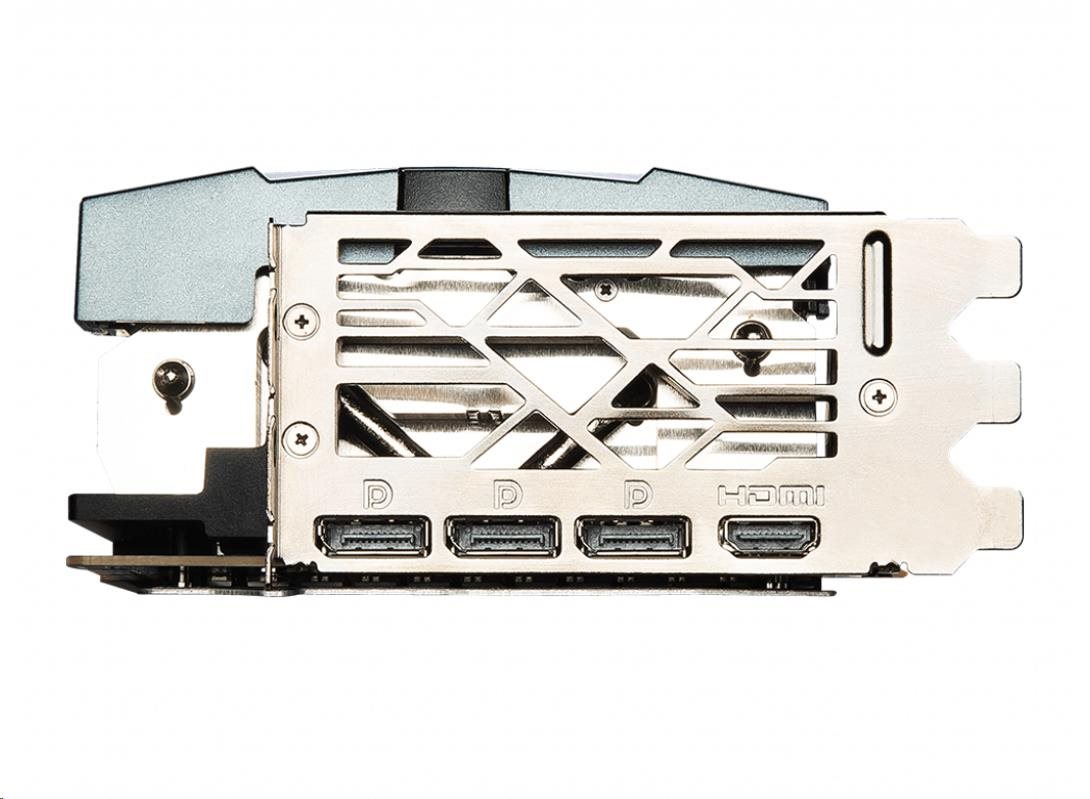

OUTPUT

DisplayPort x 3 (v1.4a)
HDMI x 1 (2.1) (Supports 4K 120Hz HDR, 8K 60Hz HDR and Variable Refresh Rate as specified in HDMI 2.1)

HDCP SUPPORT

Y

POWER CONSUMPTION

480W

POWER CONNECTORS

16-pin x 1

RECOMMENDED PSU

850 W

CARD DIMENSION (MM)

338 x 140 x 71 mm

WEIGHT (CARD / PACKAGE)

2154g / 3309g

DIRECTX VERSION SUPPORT

12 Ultimate

OPENGL VERSION SUPPORT

4.6

NVLINK SUPPORT

Y

MAXIMUM DISPLAYS

4

VR READY

Y

G-SYNC® TECHNOLOGY

Y

DIGITAL MAXIMUM RESOLUTION

7680 x 4320
