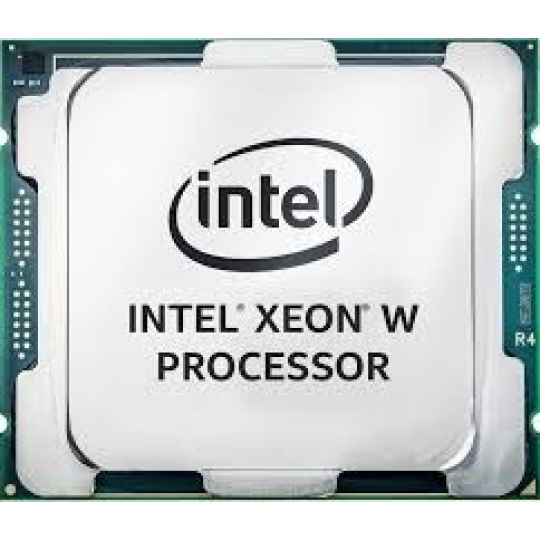

CPU INTEL XEON W-2145, LGA2066, 3.70 GHz, 11MB L3, 8/16, tray (bez chladiče)
Popis a parametry
CPU INTEL XEON W-2145, LGA2066, 3.70 GHz, 11MB L3, 8/16, tray (bez chladiče)
| Code Name | Skylake |
| Essentials | |
| Vertical Segment | Server |
| Processor Number | W-2145 |
| Lithography | 14 nm |
| Performance | |
| # of Cores | 8 |
| # of Threads | 16 |
| Processor Base Frequency | 3.70 GHz |
| Max Turbo Frequency | 4.50 GHz |
| Cache | 11 MB |
| Bus Speed | 0 GT/s QPI |
| # of QPI Links | 0 |
| # of UPI Links | 0 |
| TDP | 140 W |
| Supplemental Information | |
| Embedded Options Available | No |
| Memory Specifications | |
| Max Memory Size (dependent on memory type) | 512 GB |
| Memory Types | DDR4 1600/1866/2133/2400/2666 |
| Max # of Memory Channels | 4 |
| Max Memory Bandwidth | 85.3 GB/s |
| Physical Address Extensions | 46-bit |
| ECC Memory Supported ‡ | Yes |
| Expansion Options | |
| Scalability | 1S Only |
| PCI Express Revision | 3.0 |
| PCI Express Configurations ‡ | x4, x8, x16 |
| Max # of PCI Express Lanes | 48 |
| Package Specifications | |
| Sockets Supported | FCLGA2066 |
| Max CPU Configuration | 1 |
| T<sub>CASE</sub> | 70 |
| Package Size | 45mm x 52.5mm |
| Advanced Technologies | |
| Intel® Optane™ Memory Supported ‡ | No |
| Intel® Speed Shift Technology | Yes |
| Intel® Turbo Boost Max Technology 3.0 ‡ | No |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® vPro™ Platform Eligibility ‡ | Yes |
| Intel® Hyper-Threading Technology ‡ | Yes |
| Intel® Virtualization Technology (VT-x) ‡ | Yes |
| Intel® Virtualization Technology for Directed I/O (VT-d) ‡ | Yes |
| Intel® VT-x with Extended Page Tables (EPT) ‡ | Yes |
| Intel® TSX-NI | Yes |
| Intel® 64 ‡ | Yes |
| Instruction Set | 64-bit |
| Instruction Set Extensions | Intel® SSE4.2, Intel® AVX, Intel® AVX2, Intel® AVX-512 |
| # of AVX-512 FMA Units | 2 |
| Idle States | Yes |
| Enhanced Intel SpeedStep® Technology | Yes |
| Intel® Demand Based Switching | Yes |
| Thermal Monitoring Technologies | Yes |
| Intel® Flex Memory Access | No |
| Intel® Identity Protection Technology ‡ | Yes |
| Intel® Volume Management Device (VMD) | Yes |
| Security & Reliability | |
| Intel® AES New Instructions | Yes |
| Secure Key | Yes |
| Intel® Software Guard Extensions (Intel® SGX) | No |
| Intel® Memory Protection Extensions (Intel® MPX) | Yes |
| Intel® OS Guard | Yes |
| Intel® Trusted Execution Technology ‡ | Yes |
| Execute Disable Bit ‡ | Yes |
| Intel® Boot Guard | Yes |
.
ParametryPorovnání
Řada procesorů
Intel Xeon
Socket (patice)
Socket 2066
Druh procesoru
Serverový
Vybavení procesoru
Bez chladiče
