FRACTAL DESIGN ventilátor 140mm Venturi HF-14 černý

Typ chladiče:Aktivní; Využití chladiče:Do PC skříně; Velikost ventilátoru:140x140; Barva podsvícení:bez podsvícení; Napájecí konektor:3pin.... více
487.6 Kč bez DPH
Na dotaz
590 Kč
ks
Vyberte si zvýhodněné balení
Množstevní slevy
Kód: 319654
EAN: 7350041083351
Záruka: 24 Měsíc(ů)
Výrobce: Fractal Design
Popis a parametry

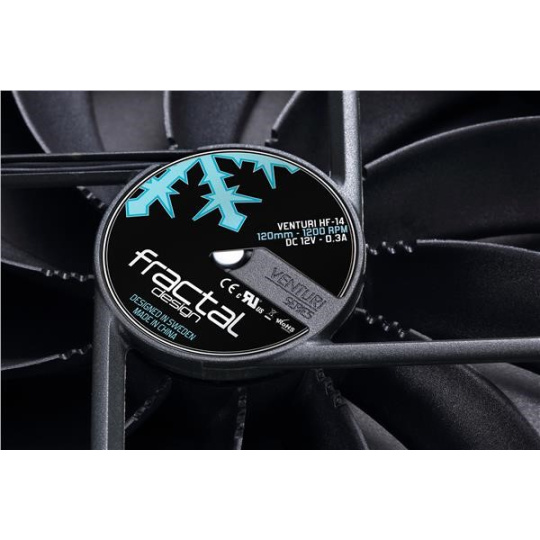

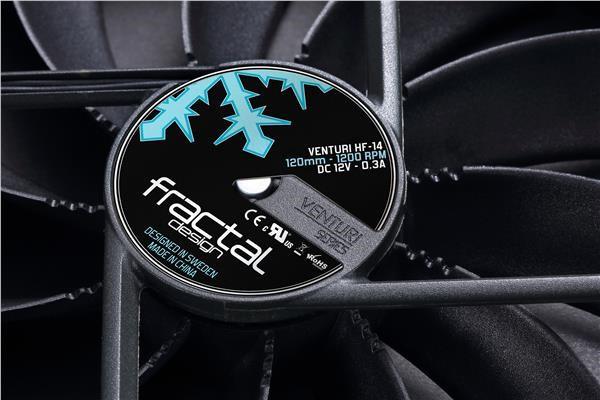

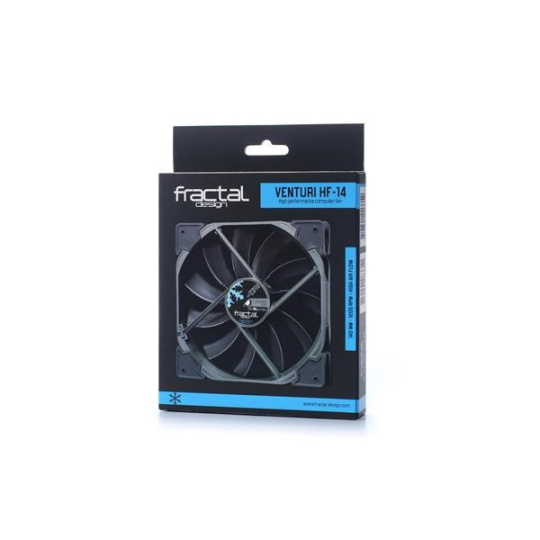

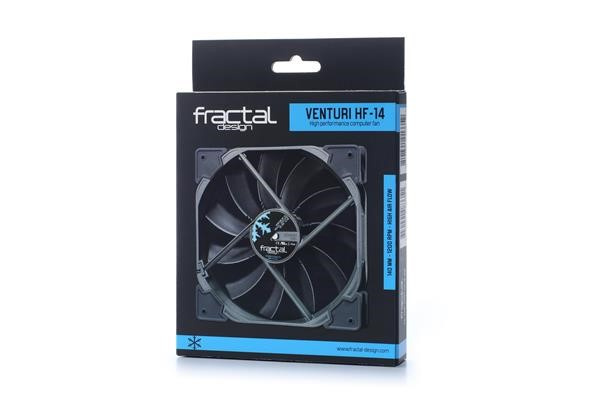

FRACTAL DESIGN ventilátor 140mm Venturi HF-14 černý

http://www.fractal-design.com/home/product/casefans/venturi-series/venturi-hf-14

The Venturi High Flow Series fans, HF-12 and HF-14, are optimized for low-restriction airflow environments, making them an excellent choice for computer case fans, or other low-restriction usage scenarios.

Designed with a variety of performance-increasing and noise-reducing features, these fans can move an amazing amount of air compared to other fans at the same, minimal noise level.

The HF-14 comes with two sets of solid vibration-dampening rubber corners: one for standard 140mm fan hole spacing (125mm) and one compatible with the standard 120mm hole spacing (105mm). The Venturi High Flow Series fans are ideal for those looking for a perfect balance between high performance and low noise built from sturdy, high quality materials.

Key features

  • Featuring true FDB-bearings, providing silent operation coupled with a long lifespan
  • Equipped with a counter-balanced magnet that reduces the axial tension on the bearing
  • Features integrated vibration-dampening corners, made from solid high-quality synthetic rubber
  • Dense, sturdy construction, made from high-grade glass fiber reinforced thermoplasticpolymer
  • Fan geometry is optimized for a ground-breaking airflow, perfect for low-restriction usage scenarios such as computer case ventilation and low-density heatsinks or radiators.
  • Aerodynamically shaped thin stator struts reduce noise and unwanted turbulence
  • Strategically placed notches on the blades further reduce and diffuse any humming noise produced when the blades pass the stator struts
  • The trip wire technology introduces a micro-turbulent layer that combats elements that negatively affect performance, resulting in quieter operation
  • Featuring a powerful motor to maintain a reliable speed and a low-speed adapter for reducing the speed without the use of a fan controller
  • 140mm fans come with an additional set of vibration-dampening corners are included that lends compatibility with 120mm fan mounts (105mm screw spacing). This enables the use of 140mm fans on many CPU coolers.
  • Available in 120mm and 140mm fan sizes

Specifications

Fan

HF-12

HP-12 PWM

HF-14

HP-14 PWM

Size [mm]

120*120*25mm

120*120*25mm

140*140*25mm

140*140*25mm

Colors available

Black blades, black corners, dark grey ("Gunmetal") frame

Black blades, black corners, dark grey ("Gunmetal") frame

Black blades, black corners, dark grey ("Gunmetal") frame

Black blades, black corners, dark grey ("Gunmetal") frame

Screw hole pattern

105*105mm

105*105mm

125*125mm

105*105mm

125*125mm

105*105mm

Connector

3-pin fan header

4-pin fan header

3-pin fan header

4-pin fan header

Bearing

FDB

FDB

FDB

FDB

Number of blades

9

7

11

7

Rotational speed [RPM]

1400

1800

1200

1500

Acoustical noise [dB (A)]

25.3

31.7

26.5

30.1

Maximum air flow [CFM]

83.4

61.4

118.2

78.1

Maximum air flow [m 3 /h]

141.7

104.3

200.8

132.7

Maximum pressure [mm H 2 O]

1.22

2.3

0.95

1.94

Actual input power [W]

1.3

1.0

2.2

1.4

Maximum rated input current [A]

0.2

0.2

0.3

0.2

Nominal input voltage [V]

12V

12V

12V

12V

Minimum startup voltage [V]

4V

6V

4V

7V

Low (0-20%) PWM speed

400 RPM

400 RPM

Low PWM Static pressure

0.45 mm H2O

0.54 mm H2O

Low PWM Air flow

15.4 CFM

26.2 m3/h

24.0 CFM

40.8 m3/h

Low PWM Noise level

< 10 dB (A)

< 10 dB (A)

Low speed adapter speed

1100 RPM

850 RPM

Low speed adapter Static pressure

0.89 mm H2O

0.59 mm H2O

Low speed adapter Air flow

65.8 CFM

111.8 m3/h

78.5 CFM

133.4 m3/h

Low speed adapter Noise level

19.0 dB (A)

18.3 dB (A)

MTBF [hours]

150,000

150,000

150,000

150,000

Unit weight [g]

169

179

202

210

Package weight [g]

215

225

260

270

Cable length [mm]

500

500

500

500

Cable type

Braided all-black ribbon wire

Braided all-black ribbon wire

Braided all-black ribbon wire

Braided all-black ribbon wire

Packaging dimensions [mm]

( Including hanging tab)

180*122*30

180*122*30

200*142*30

200*142*30

Packaging dimensions [mm]

(Excluding hanging tab )

147*122*30

147*122*30

167*142*30

167*142*30

Package contents

  • Venturi Series fan
  • Screw pack with 4 metal screws
  • [HF models] Low speed adapter
  • [HP models] 1->2 PWM signal splitter cable
  • [140 mm models] 4 additional rubber corners, with 105mm hole pattern
.
ParametryPorovnání
Využití chladiče
Do PC skříně
Typ chladiče
Aktivní
Barva podsvícení
bez podsvícení
Napájecí konektor
3pin
Velikost ventilátoru
140x140
