FUJITSU SRV TX1330M5 PRIMERGY Xeon E-2336 6C/12T 2.9GHz 16GB(1Rx8)2xM.2 SATA, BEZ HDD 8xBAY2.5 H-P 450W IRMC
Popis a parametry
FUJITSU SRV TX1330M5 PRIMERGY Xeon E-2336 6C/12T 2.9GHz 16GB(1Rx8)2xM.2 SATA, BEZ HDD 8xBAY2.5 H-P 450W IRMC
FUJITSU PRIMERGY SERVER
- pro 8ks hdd nutno doplnit RAID kontroler
- obsahuje jeden zdroj 450W - bez možnosti redundant power
- BASE UNIT PYT1335TPS

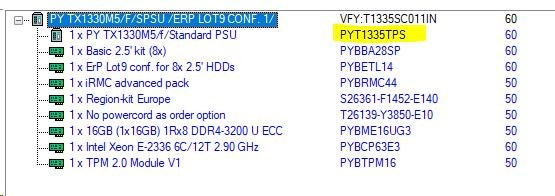

1 x VFY:T1335SC011IN PY TX1330M5/F/SPSU /ERP LOT9 CONF. 1/
1 x PYBETL14 ErP Lot9 conf. for 8x 2.5' HDDs
1 x PYBCP63E3 Intel Xeon E-2336 6C/12T 2.90 GHz
1 x PYBME16UG3 16GB (1x16GB) 1Rx8 DDR4-3200 U ECC
1 x PYBBA28SP Basic 2.5' kit (8x)
1 x S26361-F1452-E140 Region-kit Europe
1 x PYBRMC44 iRMC advanced pack
1 x T26139-Y3850-E10 No powercord as order option
1 x PYBTPM16 TPM 2.0 Module V1
Tower base unit without HDD cage, processor and RAM, incl. 1 standard power supply module 450W, 2 lockable front covers, 1 standard fan, systemboard D3931 based on Intel C256 PCH; Socket for Xeon E and Dual Core Pentium Processor and 4x Sockets for DDR4 UDIMM, iRMC S6 onboard server management incl. graphics controller and Service LAN port, 7 port SATA controller (for 4x SATA SSD/HDD, 2x M.2 and ODD) and 2x 1 Gbit Ethernet LAN controller. Vary types of HDD cage can be installed: 4x3,5 or 8x2.5" for hot plug SATA SSDs or SATA/SAS HDDs. ServerView Suite DVD Pack incl. Installation SW, Management SW and Serviceability SW option.
.
- pro 8ks hdd nutno doplnit RAID kontroler
- obsahuje jeden zdroj 450W - bez možnosti redundant power
- BASE UNIT PYT1335TPS
1 x VFY:T1335SC011IN PY TX1330M5/F/SPSU /ERP LOT9 CONF. 1/
1 x PYBETL14 ErP Lot9 conf. for 8x 2.5' HDDs
1 x PYBCP63E3 Intel Xeon E-2336 6C/12T 2.90 GHz
1 x PYBME16UG3 16GB (1x16GB) 1Rx8 DDR4-3200 U ECC
1 x PYBBA28SP Basic 2.5' kit (8x)
1 x S26361-F1452-E140 Region-kit Europe
1 x PYBRMC44 iRMC advanced pack
1 x T26139-Y3850-E10 No powercord as order option
1 x PYBTPM16 TPM 2.0 Module V1
Tower base unit without HDD cage, processor and RAM, incl. 1 standard power supply module 450W, 2 lockable front covers, 1 standard fan, systemboard D3931 based on Intel C256 PCH; Socket for Xeon E and Dual Core Pentium Processor and 4x Sockets for DDR4 UDIMM, iRMC S6 onboard server management incl. graphics controller and Service LAN port, 7 port SATA controller (for 4x SATA SSD/HDD, 2x M.2 and ODD) and 2x 1 Gbit Ethernet LAN controller. Vary types of HDD cage can be installed: 4x3,5 or 8x2.5" for hot plug SATA SSDs or SATA/SAS HDDs. ServerView Suite DVD Pack incl. Installation SW, Management SW and Serviceability SW option.
.
ParametryPorovnání
RAID
1
RAID
10
Řada procesorů
Intel 6 Core Xeon
Provedení serveru
Tower
Redundantní zdroj
Ne
Redundantní větráčky
Ne
Maximální počet slotů PCIe
1
Model procesoru
Intel Xeon E-2336
Výkon CPU dle PassMark
16467
Velikost paměti RAM (GB)
16
Maximální paměťová kapacita serveru (GB)
128
Maximální počet procesorů
1
Maximální počet HDD v serveru
8
FUJITSU SRV TX1330M5 PRIMERGY Xeon E-2336 6C/12T 2.9GHz 16GB(1Rx8)2xM.2 SATA, BEZ HDD 8xBAY2.5 H-P 450W IRMC
