GEMBIRD Dat přepínač HDMI splitter rozbočovač 2 cesty
Popis a parametry
GEMBIRD Dat přepínač HDMI splitter rozbočovač 2 cesty

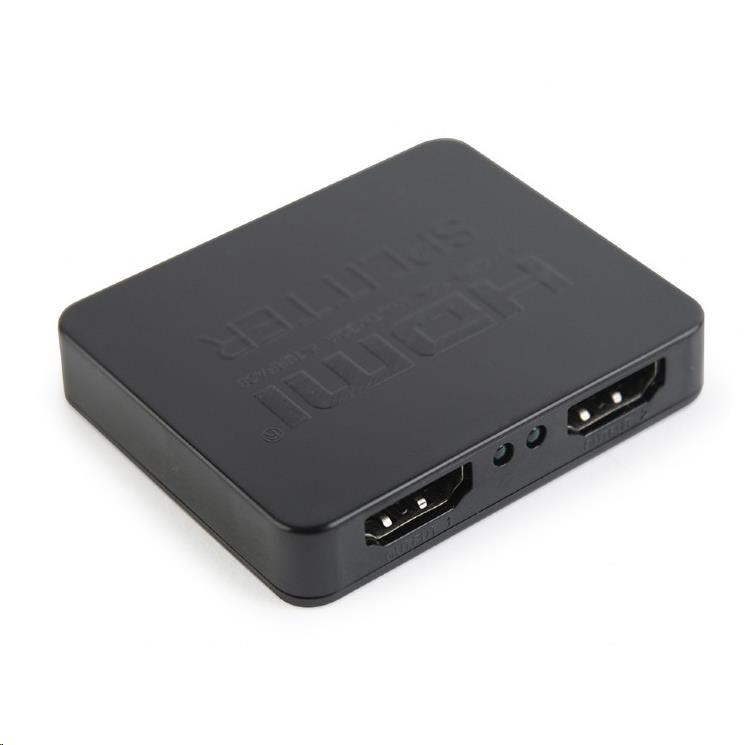

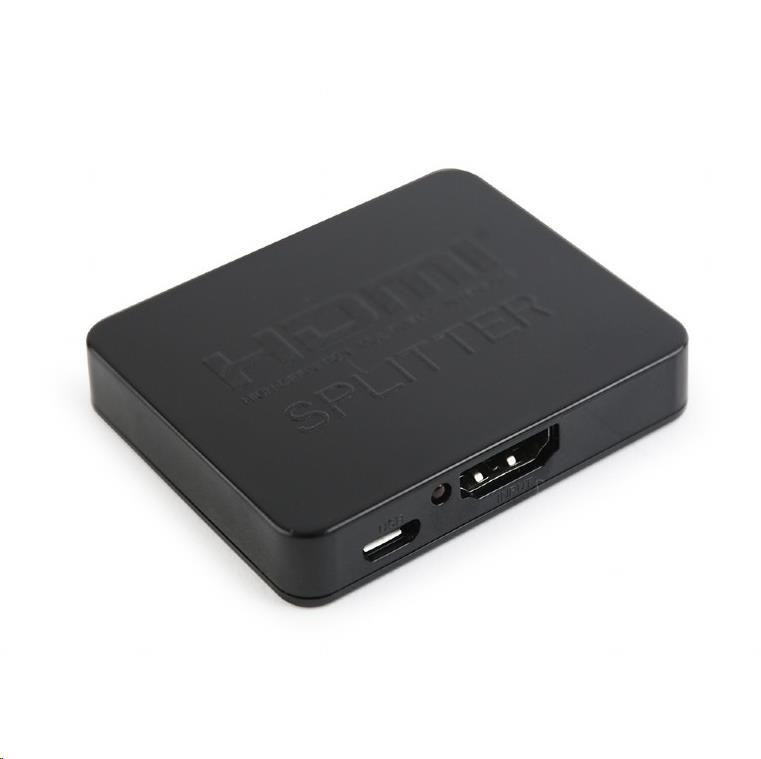

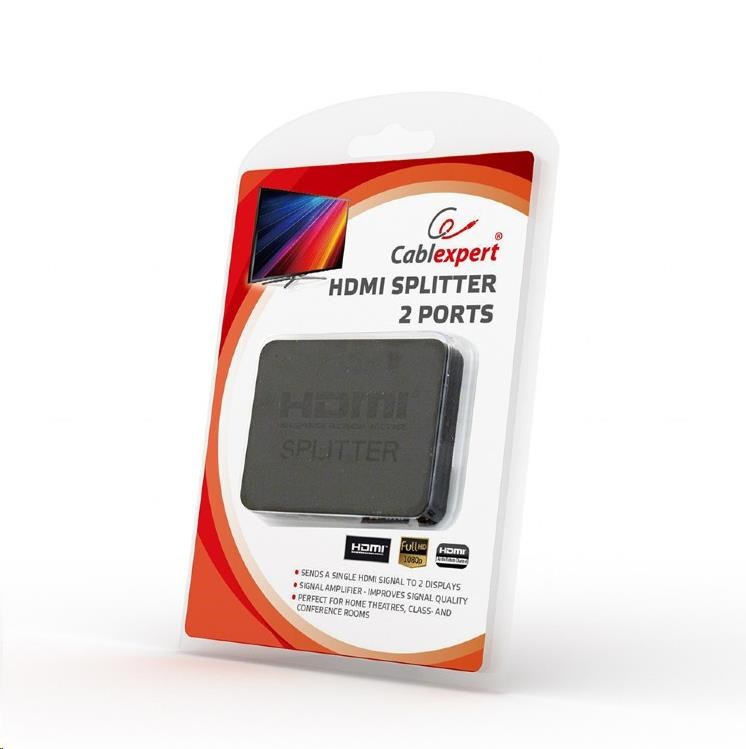

HDMI splitter, 2 ports
Perfect connection
- Sends a single HDMI signal to 2 displays
- Signal amplifier - Improves signal quality
- Perfect for home theatres, class- and conference rooms
Features
- Sends a single HDMI signal to 2 separate monitors, projectors or TV’s
- The digital amplifier increases the transmission distance and also improves signal quality
- Supports 3D video
TECHNICAL SPECIFICATIONS
| Ports | one input, receptacle, 2 output HDMI output receptacles, 19 pin (A) |
| Interface standard | HDMI + HDCP v.1.4 (compatible with all HDMI versions) |
| Video formats | HDMI (480p/576i/576p/720p/1080i/1080P) |
| Maximal single-link range | 1920 x 1080 pixels, 1080p |
| Dual-link range | up to 3840 x 2160 at 30 Hz; color 30bit, 36bit |
| Supports Blue-Ray | 24/50/60fs/HD-DVD/xvYCC, audio DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD/HD(HBR) |
| Signal retiming support | yes |
| Working distance | up to 20 m at AWG26 HDMI cable (at 4K resolution - 8 m input max, up to 12 m output) |
| Video amplifier | 0.5...1.0 Vp-p, up to 225 MHz bandwidth, DDC signal 5 Vp-p |
| Power adapter | 5 V DC, 1 A |
| Dimensions | 70 x 60 x 20 mm |
| Net weight | 0.12 kg |
.
