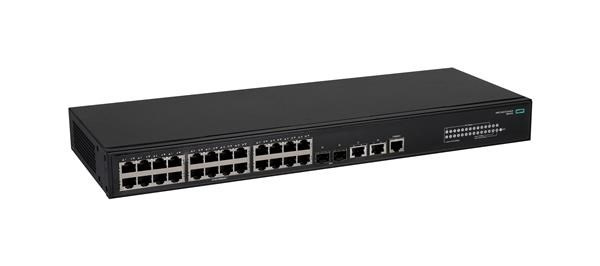

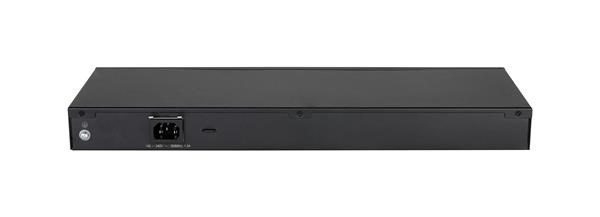

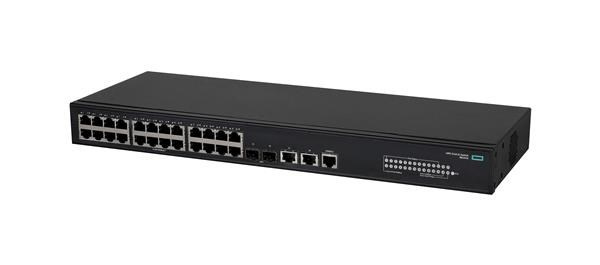

HPE FlexNetwork 5140 24G 2SFP+ 2XGT EI Switch R8J41AR RENEW
Popis a parametry
HPE FlexNetwork 5140 24G 2SFP+ 2XGT EI Switch R8J41AR RENEW
HPE FlexNetwork 5140 24G 2SFP+ 2XGT EI Switch R8J41AR RENEW
Ports
(24) RJ-45 autosensing 10/100/1000 ports (2) SFP+ fixed 1000/10000 SFP+ ports (2) RJ-45 1/10GBASE-T ports
Throughput
up to 96 Mpps
Routing/switching capacity
128 Gbps
PoE capability
370W PoE+ Maximum, depending on model
Stacking capabilities
IRF 9 switches
Management features
IMC - Intelligent Management Center
SmartMC
Command-line interface
Web browser
SNMP manager
SmartMC
Command-line interface
Web browser
SNMP manager
Input voltage
100 - 240 VAC, rated (depending on power supply chosen)
Power consumption
33 W (maximum)
Weight
5.51 lbs
UNSPSC code
43222612
The HPE FlexNetwork 5140 EI Switch Series delivers scalability, high availability, and low TCO at the access layer of medium and large enterprise campus networks. The series offers enterprise-class QoS and security, Hewlett Packard Enterprise Intelligent Resilient Fabric (IRF) stacking, static layer 3 routing and RIP; convenient fixed 10GbE uplink ports, PoE+, ACLs, and IPv6; and delivers energy savings with Energy Efficient Ethernet.
The HPE FlexNetwork 5140 EI Switch Series also includes Smart Management Center (SmartMC), an embedded network management tool that can be leveraged at no additional cost by small and medium networks for centralized management and operations. The series can also be managed with HPE Intelligent Management Center (IMC) for a single view of your entire network.
The HPE FlexNetwork 5140 EI Switch Series also includes Smart Management Center (SmartMC), an embedded network management tool that can be leveraged at no additional cost by small and medium networks for centralized management and operations. The series can also be managed with HPE Intelligent Management Center (IMC) for a single view of your entire network.
What's new
- Gigabit Ethernet access switch with static layer 3 routing, RIP, high density 10GbE uplinks, and POE+ models for voice, video, and wireless.
- Supports IRF technology that enables plug-and-play device aggregation and link aggregation across multiple devices, enhancing network redundancy and resource utilization.
- Includes embedded network management capabilities with Smart Management Center (SmartMC).
- Includes energy-saving green design features such as automatic switching of idle ports to energy-saving mode and powering down unused ports.
Features
Scalability and High Availability
- The HPE FlexNetwork 5140 EI Switch Series delivers scalability and enhances reliability of the network with HPE Intelligent Resilient Fabric (IRF) technology. IRF stacking enables virtual resilient switching fabrics, where two or more switches perform as a single L2 switch and L3 router.
- IRF stacking enhances performance and reliability with uninterrupted L2 switching and L3 forwarding and reduces operational complexity with simpler, flatter, and more agile networks.
- Four fixed uplinks (SFP, SFP+, and 10GBASE-T) deliver performance for bandwidth intensive applications.
- Link redundancy with support for protocols such as Spanning Tree/MSTP, RSTP, and Smart link provides high availability.
Comprehensive Security Control
- The HPE FlexNetwork 5140 EI Switch Series supports flexible authentication methods including 802.1X and MAC Authentication for greater security and policy-driven application authentication. Per-user access control lists (ACLs) provide identity-driven security and access control.
- ACLs provide IP Layer 2 to Layer 4 traffic filtering while supporting global ACL, VLAN ACL, port ACL, and IPv6 ACL.
- Dynamic ARP protection with functions such as ARP Detection and ARP packet validation that block broadcasts from unauthorized hosts, preventing eavesdropping or theft of network data.
- Centralized security policy management and network protection with HPE Intelligent Management Center (IMC) End User Admission Domination (EAD) which integrates security policies, network access control, and access right control policies to form a cooperative security system.
- Enhance security with encryption of access methods (CLI, GUI, or MIB) through SSHv2, SSL, and/or SNMPv3, and other features including DHCP protection, IP source guard, and RADIUS/HWTACAS.
Simplified Management
- The HPE FlexNetwork 5140 EI Switch Series can be seamlessly managed with HPE Intelligent Management Center (IMC) to provide end-to-end network transparency with a consistent network experience through comprehensive configuration, compliance, and policy management.
- Supports SmartMC, an embedded network management tool with a web-based GUI to simplify operations and facilitate centralized management. It offers features such as configuration backup, software version management and seamless switch replacement.
- RMON and sFlow provide advanced monitoring and reporting capabilities for statistics, history, alarms, and events.
Enhanced Quality of Service
- The HPE FlexNetwork 5140 EI Switch Series supports advanced classifier-based QoS which groups traffic using multiple match criteria based on Layer 2 and 3 information; it applies QoS policies such as setting priority level and rate limit to selected traffic on a port, VLAN, or entire switch.
- Provides traffic prioritization with supported congestion actions include: strict priority (SP) queuing, weighted round robin (WRR), weighted random early detection (WRED), and SP+WRR and traffic policing with Committed Access Rate (CAR) and line rate.
- Reduce unwanted network traffic with broadcast control and limitation of broadcast traffic rate to cut down on unwanted network broadcast traffic.
ParametryPorovnání
Maximální počet portů
24
Provedení
Rack mounted 19"
Technologie
Gigabit Ethernet + 10 GbE porty
Technologie
Gigabit optika + 10 Gigabit optika
Management
SNMP/RMON
Počet portů LAN
24
Ventilátor
Ano
Přenosová rychlost LAN (Mb/s)
96
Funkce
L3
Funkce
QoS (Quality of service)
Funkce
VLAN (virtual local area network)
Funkce
DHCP snooping
Funkce
L2+L4
Funkce
Stohovatelnost
Počet portů Combo
8
Počet SFP portů
2
Počet SFP+ portů
2
Počet portů LAN
24
Přenosová rychlost LAN (Mb/s)
96
Maximální počet portů
24
Počet portů Combo
8
Počet SFP portů
2
Počet SFP+ portů
2
Počet USB 2.0
1
Počet USB 2.0
1
