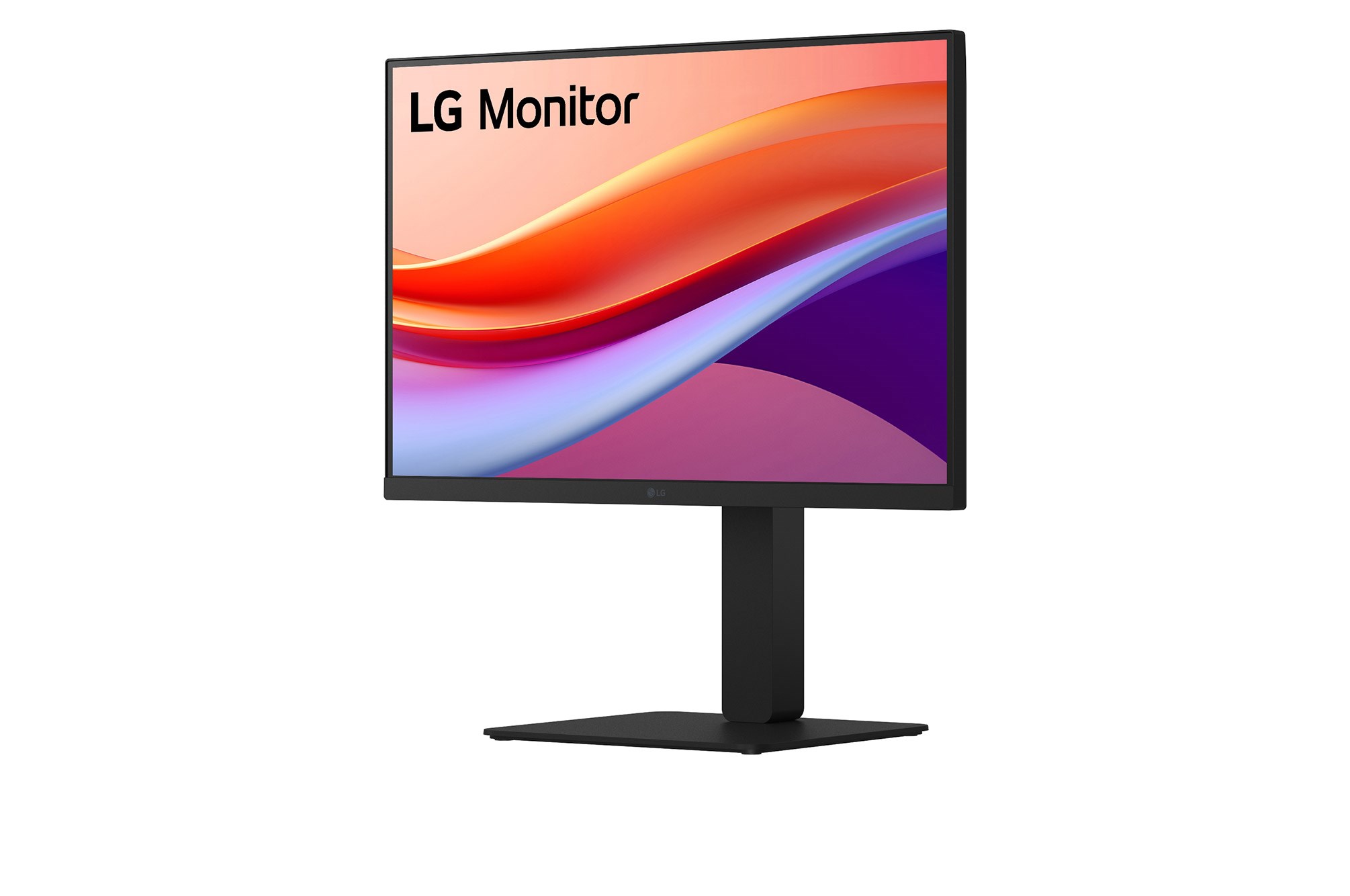

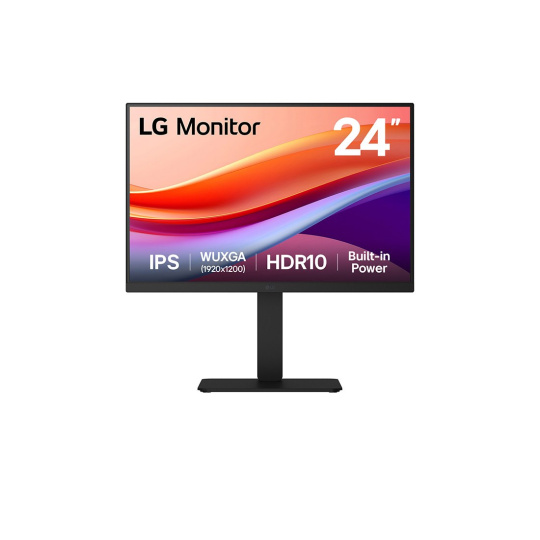

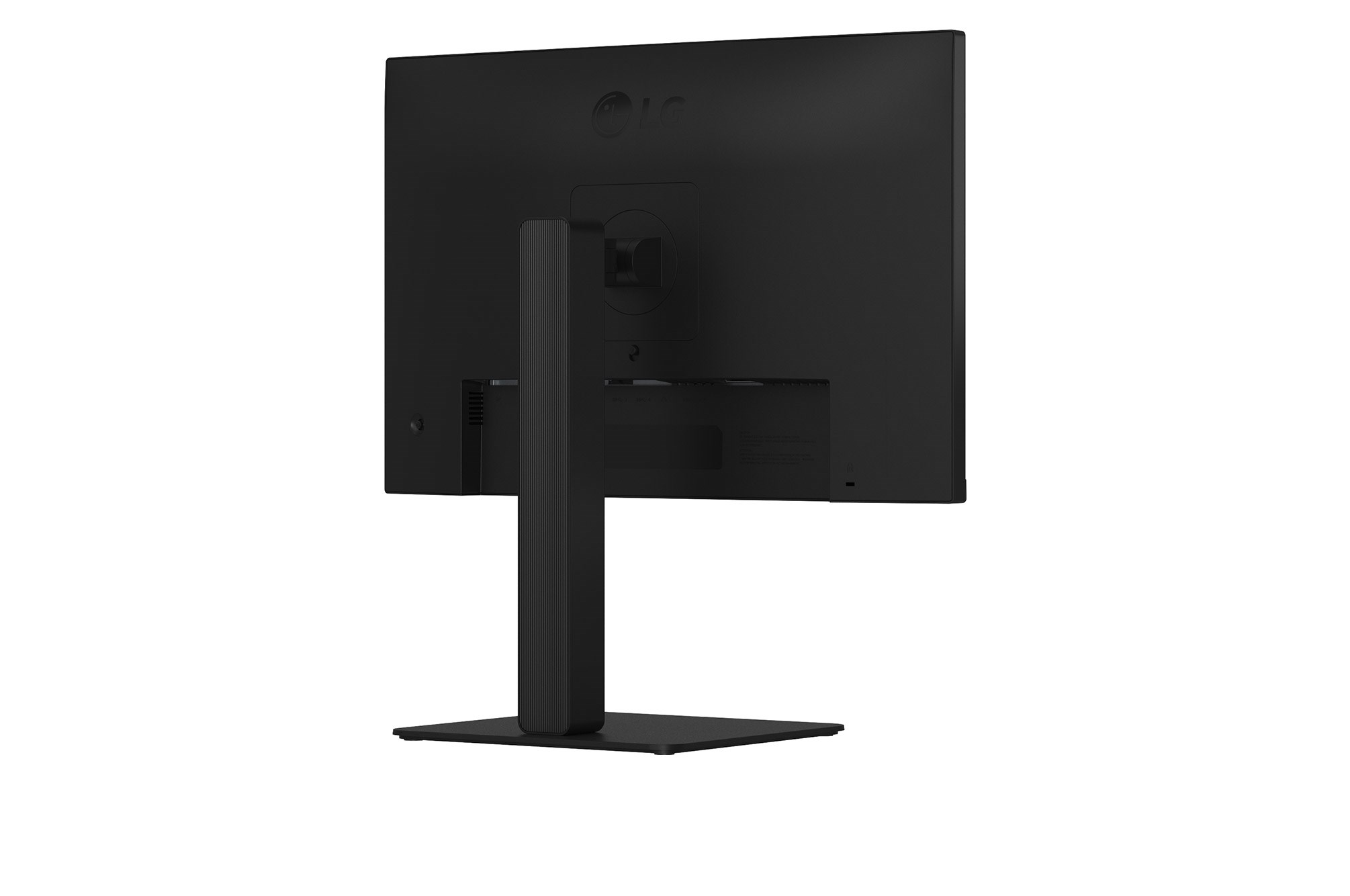

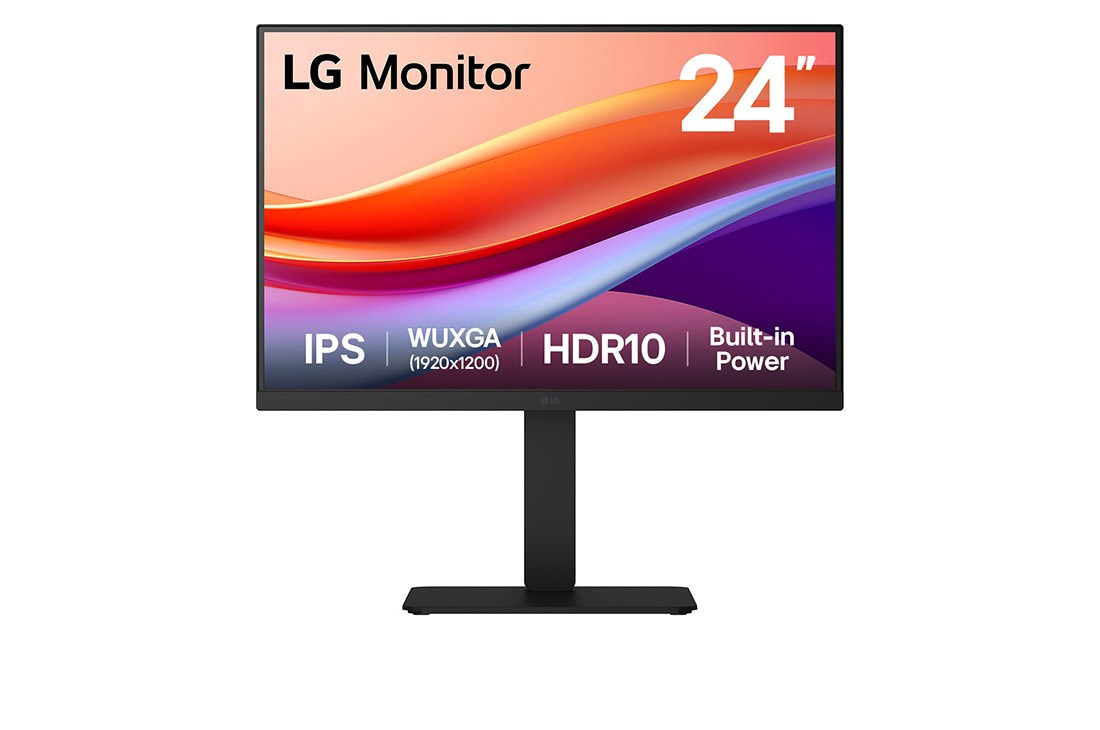

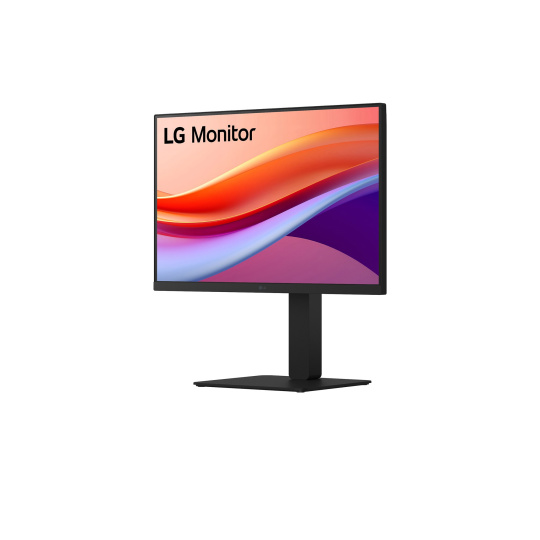

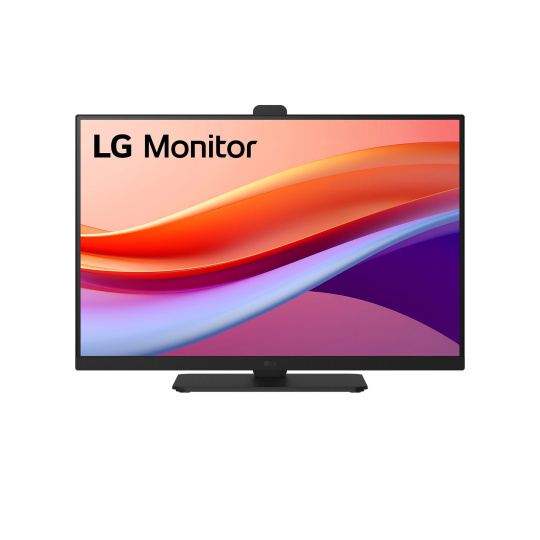

LG MT IPS LCD 23,8" 24BA55W-B - IPS panel, 1920x1200, 75Hz, HDMI, DP, USB 2.0, repro, pivot
Popis a parametry
LG MT IPS LCD 23,8" 24BA55W-B - IPS panel, 1920x1200, 75Hz, HDMI, DP, USB 2.0, repro, pivot
Specifikace
| Info | |
|---|---|
| Product name | FHD |
| Year | Y25 |
| Display | |
| Size [Inch] | 24 |
| Size [cm] | 61.13 |
| Resolution | 1920 x 1200 |
| Panel Type | IPS |
| Aspect Ratio | 16:10 |
| Pixel Pitch [mm] | 0.270 x 0.270mm |
| Brightness (Min.) [cd/m2] | 280 cd/m2 |
| Brightness (Typ.) [cd/m2] | 350 cd/m2 |
| Color Gamut (Min.) | sRGB 95% (CIE1931) |
| Color Gamut (Typ.) | sRGB 99% (CIE1931) |
| Color Depth (Number of Colors) | 16.7M |
| Color Bit | 8bit (6bit+FRC) |
| Contrast Ratio (Min.) | 700:1 |
| Contrast Ratio (Typ.) | 1000:1 |
| Response Time | 5ms (GtG at Faster) |
| Refresh Rate (Max.) [Hz] | 75 |
| Viewing Angle (CR?10) | 178o(R/L), 178o(U/D) |
| Surface Treatment | AntiGlare |
| Features | |
| Color Calibrated in Factory | YES |
| Flicker Safe | YES |
| Picture Mode | Custom, Reader, Photo, Cinema, Color Weakness, Game |
| Reader Mode | YES |
| Color Weakness | YES |
| Super Resolution+ | YES |
| Black Stabilizer | YES |
| Dynamic Action Sync | YES |
| Smart Energy Saving | YES |
| OSD Language | 18 countries (English, Germanic, French, Spanish, Italian, Swedish, Finnish, Portuguese, Portuguese(brazil), Polish, Russian, Greek, Ukrainian, Chinese, Traditional Chinese, Japanese, Korean, Hindi) |
| Live Color Low Blue Light | YES |
| SW Application | |
| Dual Controller | YES |
| OnScreen Control (LG Screen Manager) | YES |

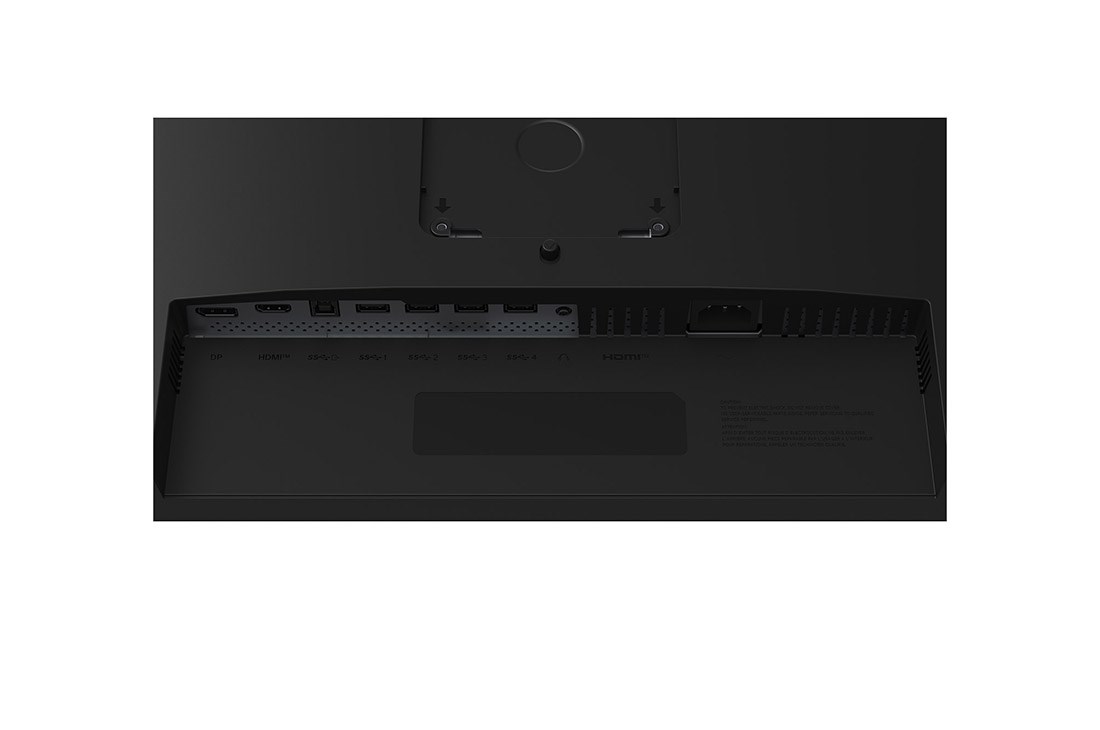

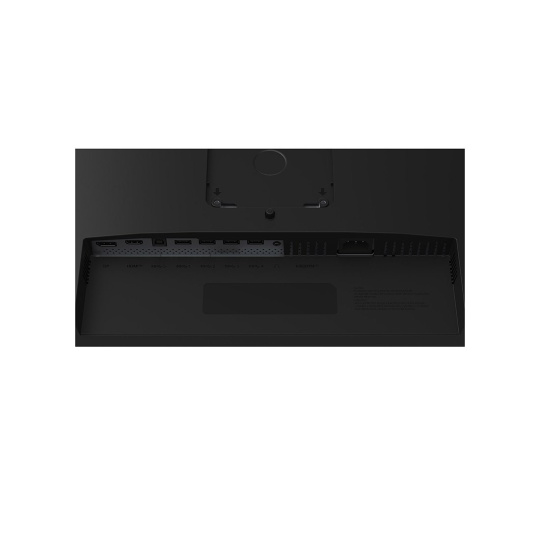

| Connectivity | |
| HDMI | YES(1ea) |
| HDMI Version | 1.4 |
| HDMI (HDCP Version) | 1.4 |
| HDMI (w/o VRR) | 48~75Hz |
| DisplayPort | YES(1ea) |
| DP Version | 1.2 |
| DP (HDCP Version) | 1.4 |
| DP (w/o VRR) | 48~75Hz |
| USB Downstream Port | YES(4ea/ver3.2 Gen1) |
| Headphone out | 3pole (Sound Only) |
| [Location] | Rear Bottom |
| Sound | |
| Speaker | 2W x 2 |
| Power | |
| Type | Built-in Power |
| AC Input | 100~240V (50/60Hz) |
| DC Output | 19V/2.2A |
| Power Consumption (On-Mode) | 14.8W |
| Power Consumption (On-Mode) (ErP) | 17W |
| Power Consumption (Sleep Mode) | Less than 0.5W |
| Power Consumption (DC Off) | Less than 0.3W |
| Mechanical | |
| Borderless Design | Normal |
| Color (Front Cabinet) | Matt Black |
| Color (Middle Cabinet) | Matt Black |
| Color (Back Cover) | Matt Black |
| Color (Stand Body) | Matt Black |
| Color (Stand Base) | Matt Black |

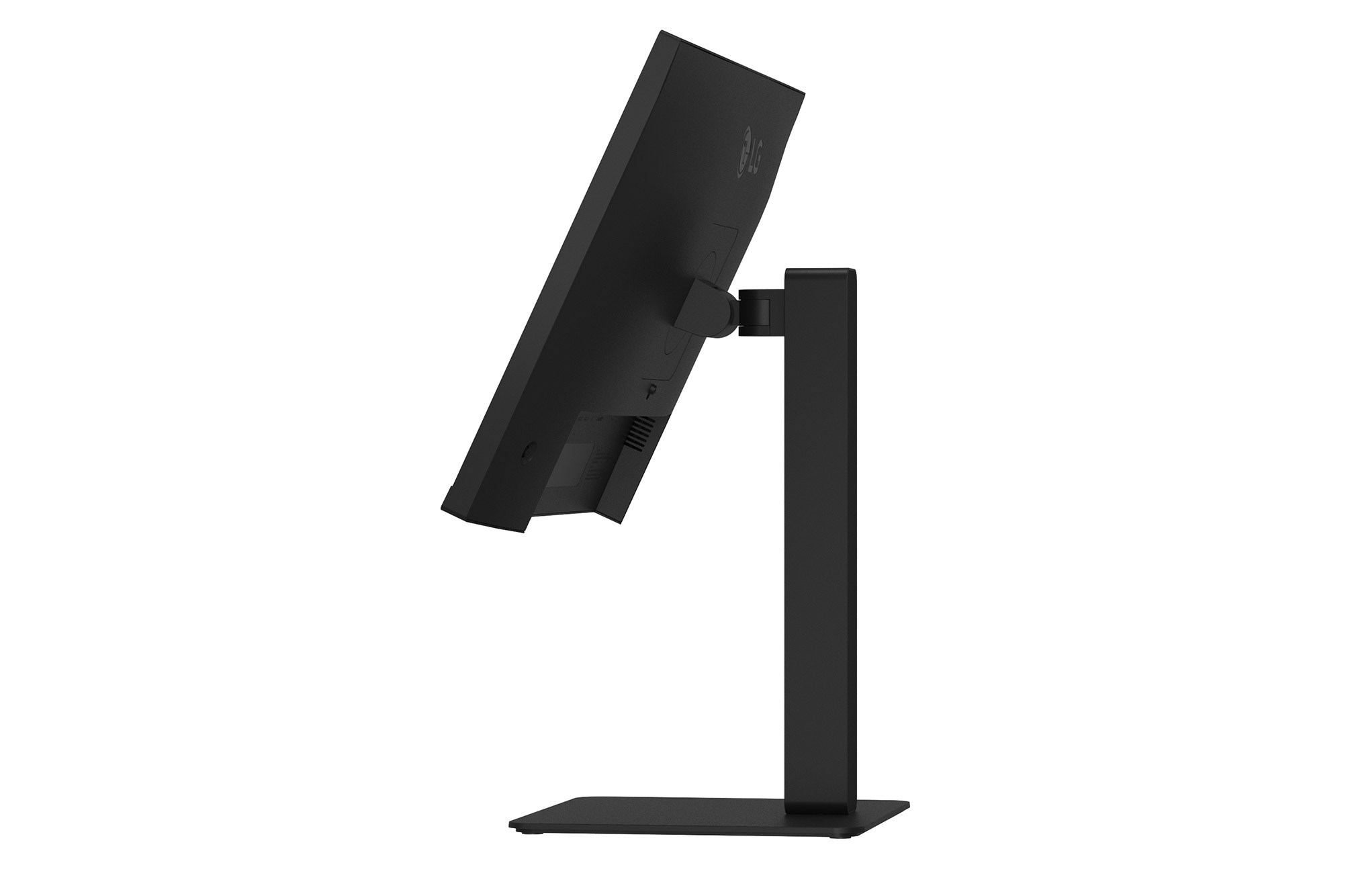

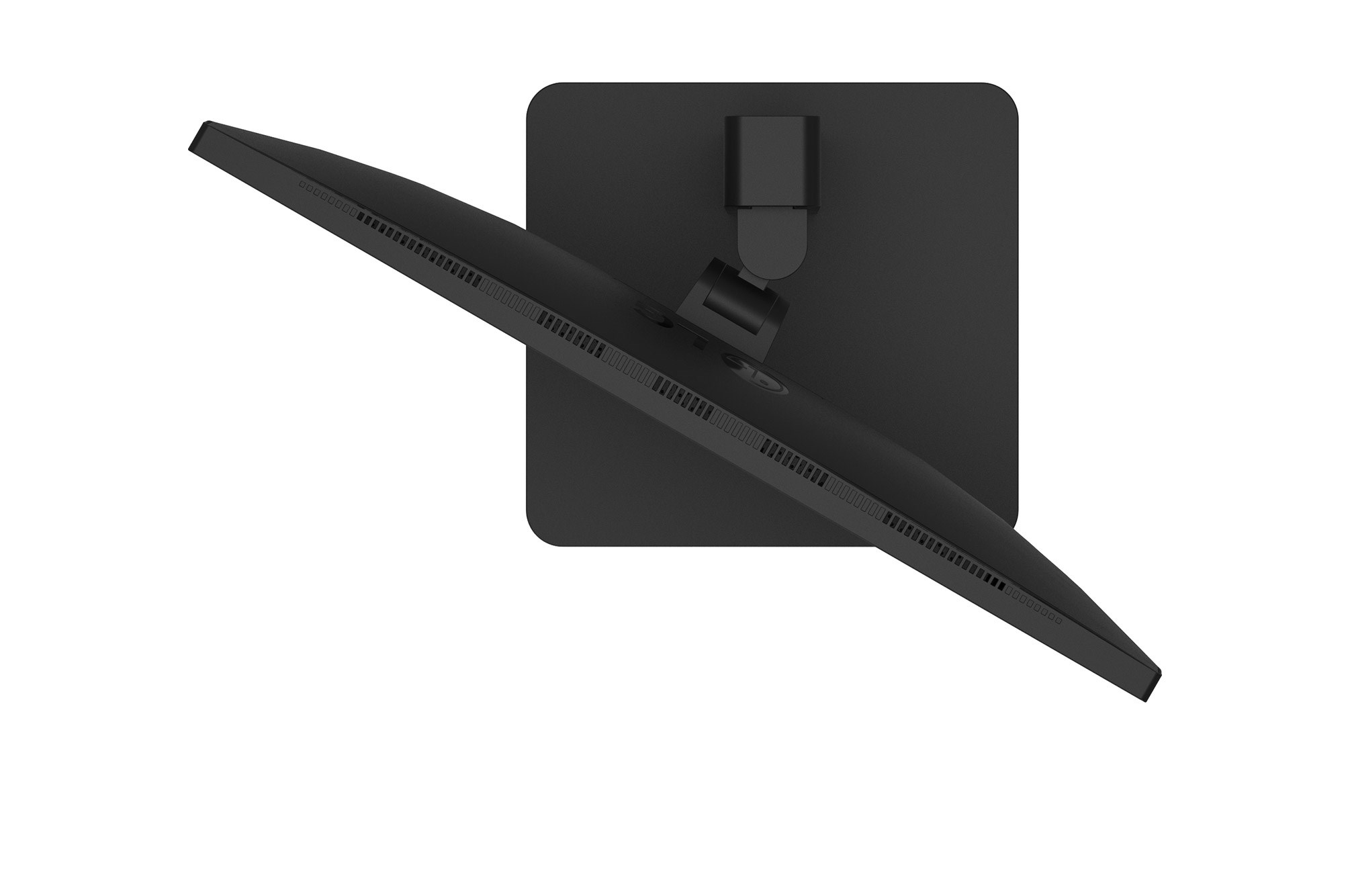

| Display Position Adjustments | Tilt/Height/Swivel/Pivot |

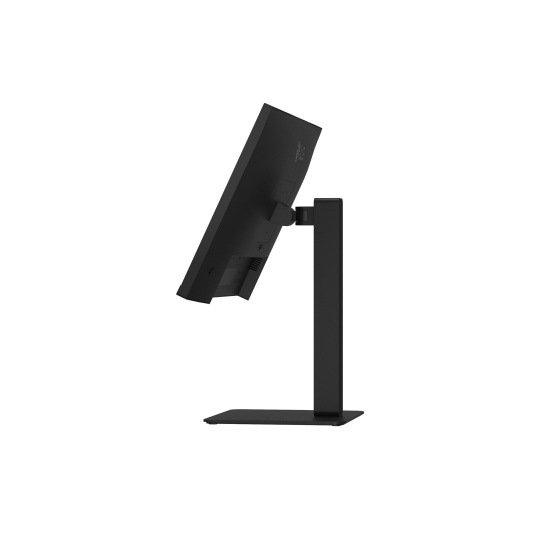

| Tilt | -5°(±3°) ~ 21°(+4°/2°) |

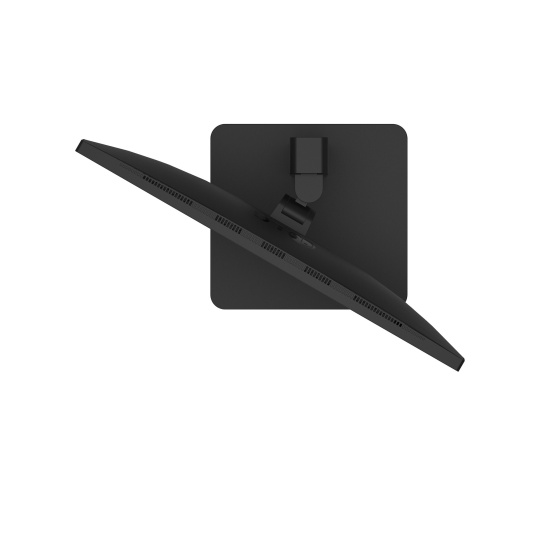

| Swivel | 45 ~ 45 (±5) |
| Height Range [mm] | 150 mm |
| Down Height [mm] | 31.5mm |
| Pivot | Bi-Direction |
| Wall Mountable [mm] | 100 x 100 mm |
| Base Detachable | YES |
| OneClick Stand | YES |
| Dimensions/Weights | |
| Dimension with Stand (W x H x D) [mm] | 532.8 x 382.2(UP 532.2) x 250 mm |
| Dimension without Stand (W x H x D) [mm] | 532.8 x 350.7 x 49.5mm |
| Dimension in Shiping (W x H x D) [mm] | 604 x 184 x 525 mm |
| Weight with Stand [kg] | 6.6kg |
| Weight without Stand [kg] | 4.0kg |
| Weight in Shipping [kg] | 8.4kg |
| Pallet Stuffing (20ft/40ft/40ft HC) | 396/880/1040 |
| Accessory | |
| Power Cord | YES |
| Power Cord (Color/Length) | Black / 1.8m |
| HDMI | YES(1ea) |
| Display Port | YES |
| Display Port (Color/Length) | Black / 1.8m |
| Others (Accessory) | cable holder+screw |
| Standard | |
| TCO | YES |
| EPA | YES |
| TUV-GS | YES |
| TUV-Ergo | YES |
| CB | YES |
| UL (cUL) | YES |
| FCC-B | YES |
| EPEAT (USA) | SILVER |
| EPEAT (Germany) | SILVER |
| ErP | YES |
| CE | YES |
ParametryPorovnání
Formát obrazovky
16:10
Povrchová úprava displeje
Antireflexní
Rozlišení displeje
1920x1200
Rozhraní
HDMI
Rozhraní
DisplayPort
Rozhraní
USB 3.2
Rozhraní
3.5mm Jack
Výbava
Reproduktory
Výbava
VESA montáž
Výbava
Pivot
Výbava
Redukce blikání (flicker-free)
Výbava
Redukce modrého světla
Energetická třída
E
Typ panelu
IPS
Standardní záruka (roky)
2
Použití
Kancelářský
Rozhraní vstup
HDMI
Rozhraní vstup
DP
Rozhraní výstup
3,5 mm Jack
Rozhraní výstup
USB hub
Vlastnost
Rovný
HDMI počet
1
Barevná hloubka (bit)
8
DP verze
1.2
USB verze
3.2
VESA rozměry
100x100
DP počet
1
HDMI verze
1.4
USB počet
4
USB umístění
Vzadu
Úhlopříčka displeje (")
24
Obnovovací frekvence displeje (Hz)
75
Kontrast:1
1000
Doba odezvy (ms)
5
Hmotnost (kg)
6,6
Jas (cd/m2)
350
