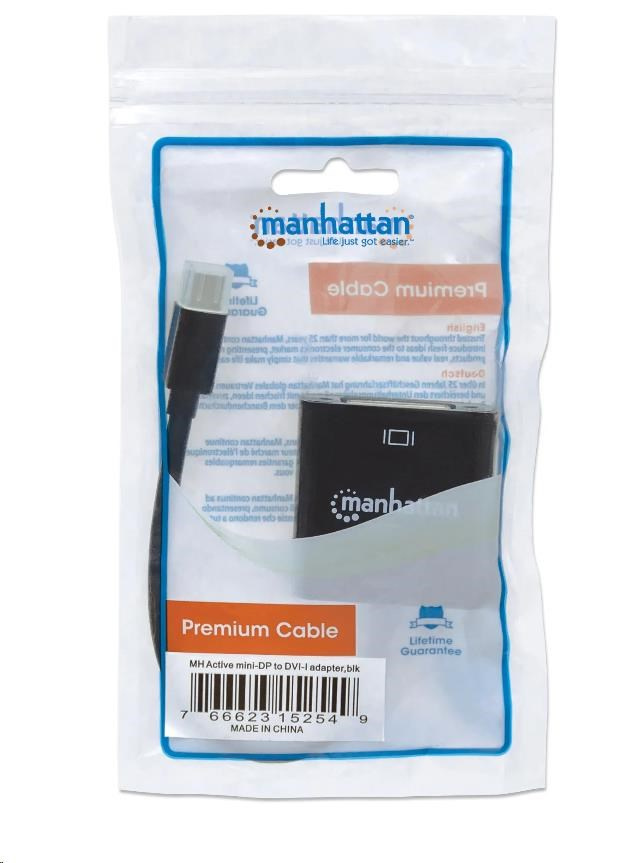

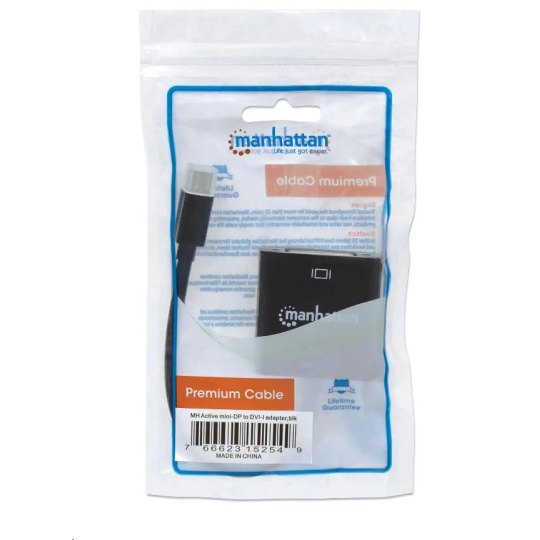

Active Mini DisplayPort to DVI-I Adapter
Mini DisplayPort Male to DVI-I Dual-Link Female, Black

• Connects a Mini DisplayPort source with a DVI-I display cable; backward compatible with DVI-D single link
• Delivers a single, high-quality, active signal to DVI display - ideal for multiple-screen and Single Large Surface (SLS) applications
• Active adapter (signal regeneration) overcomes non-DP++ (dual-mode) video/graphics card limitations and ensures the best connection to Ultra HD monitors, projectors and more

Easily connect a single-mode Mini DisplayPort source to DVI-I cable.

Manhattan Active Mini DisplayPort to DVI-I Adapters establish a fast and convenient connection between a media source equipped with a Mini DisplayPort and a DVI display cable. This active adapter overcomes the non-DP++ (dual-mode) video/graphics card's limitations and converts the signal to display. It is ideal for multi-screen gaming, digital signage in retail displays, financial market and other applications. Nickel-plated contacts and full shielding help Manhattan Active Mini DisplayPort to DVI Adapters provide clear and stable video transmissions in UHD, home and office multimedia applications. Durable PVC jackets and molded boots with strain relief help ensure connections remain uninterrupted and steady.

Features:

• Connects a Mini DisplayPort source with a DVI-I display cable; backward compatible with DVI-D single link
• Delivers a single, high-quality, active signal to DVI display - ideal for multiple-screen and Single Large Surface (SLS) applications
• Active adapter (signal regeneration) overcomes non-DP++ (dual-mode) video/graphics card limitations and ensures the best connection to Ultra HD monitors, projectors and more
• Ideal for gaming, digital signage, financial and other markets; supports AMD Eyefinity, Nvidia and other multi-display systems
• Supports resolution up to 3840x2160 (4K@30Hz)
• Fully shielded to reduce EMI and other interference sources
• Molded PVC boot and strain relief
• Three-year warranty

Specifications:

Standards and Certifications
FCC
CE
RoHS2
UL 20276
DisplayPort v1.2a

General
Active Mini DP conversion
Maximum single-link range: 3840x2160 at 30 Hz resolution
32 AWG connectors
Withstanding voltage: 300 V DC
Insulation resistance: 5 MOhms
Conductive resistance: 10 Ohms

Connectors
One Mini DisplayPort 20-pin male
One DVI-I Dual Link 29-pin female
Nickel plated
Molded PVC boot
Shielded

Physical
Dimensions: 4.5 x 1.5 x 19.5 cm (1.8 x 0.6 x 7.7 in.)
Weight: 34 g (0.03 oz.)
Housing: plastic

Operating Environment
Operation Temperature: 32 – 104°F (0 – 40°C)
Storage Temperature: -4 – 140°F (-20 – 60°C)
Humidity (noncondensing): 0 – 96%

System Requirements
Windows XP/Vista/7/8/10 or Mac OS 9 or above or Linux

Package Contents
Active Mini DisplayPort to DVI-I Adapter
