Manhattan kabel HDMI na DVI-D, Dual Link, 1m, černá
Popis a parametry
Manhattan kabel HDMI na DVI-D, Dual Link, 1m, černá

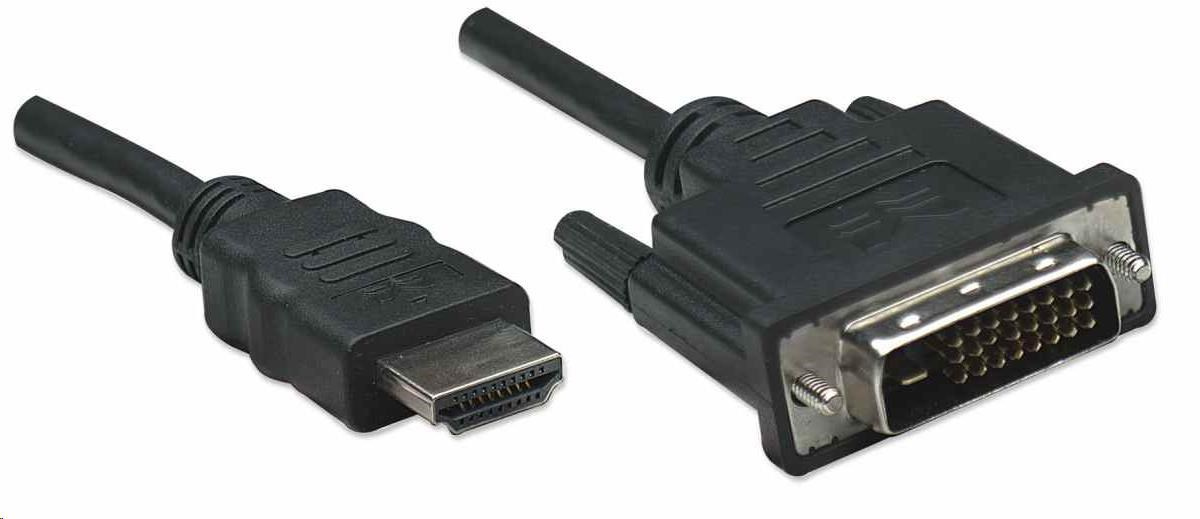

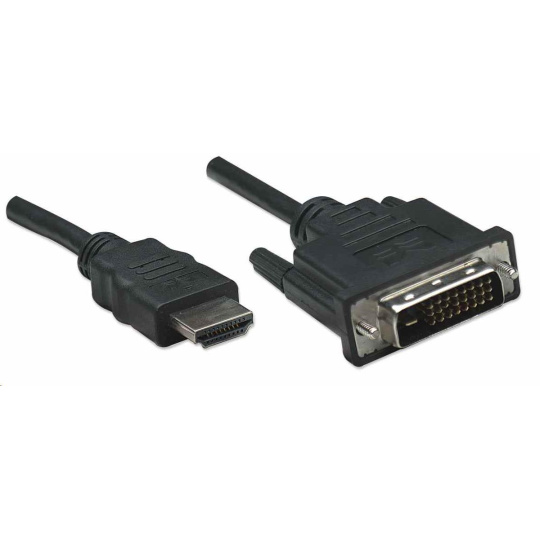

HDMI to DVI-D Cable
The Manhattan HDMI to DVI-D Cable delivers the brightest, most accurate colors and sharpest detail when connecting a high-definition television, LCD or plasma display, digital satellite receiver, DVD player, digital projector or other DVI- or HDMI-equipped display devices. Manhattan HDMI to DVI-D Cable is engineered and constructed of quality materials to deliver dependable transmissions in digital video applications. Full foil and braided shielding, molded boots with strain relief, protective PVC jackets and gold-plated connections help provide maximum conductivity and clear, crisp signal transmissions with reduced EMI interference and distortion.

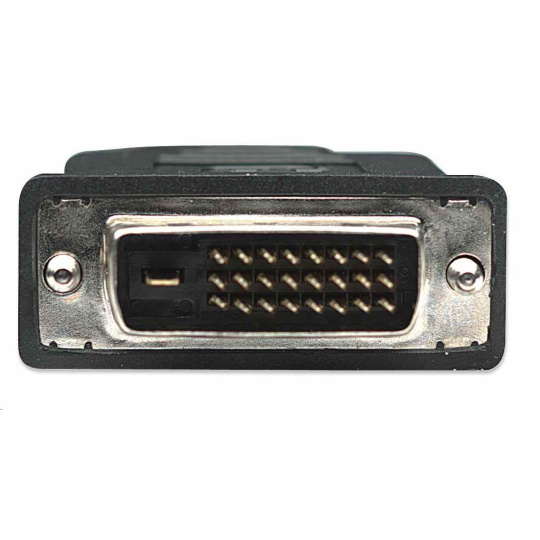

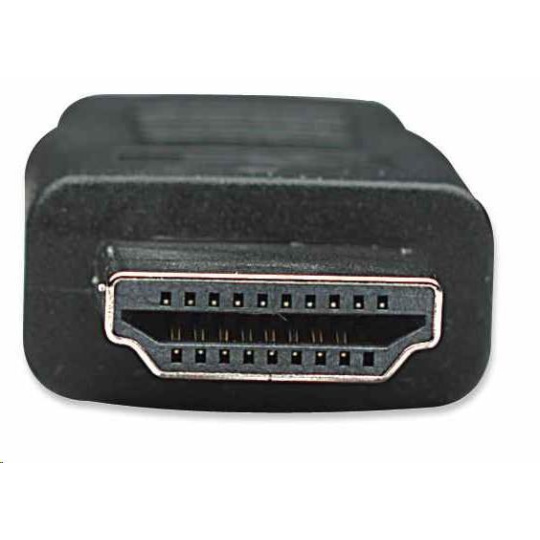

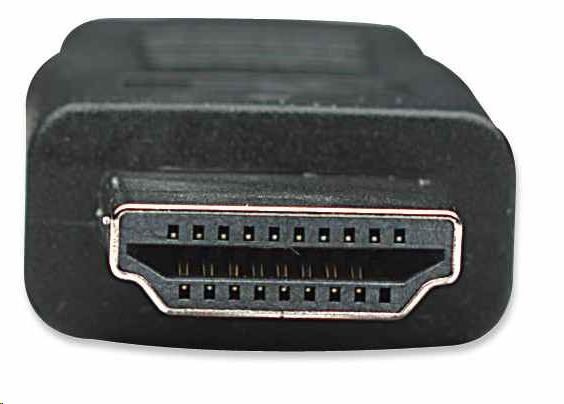

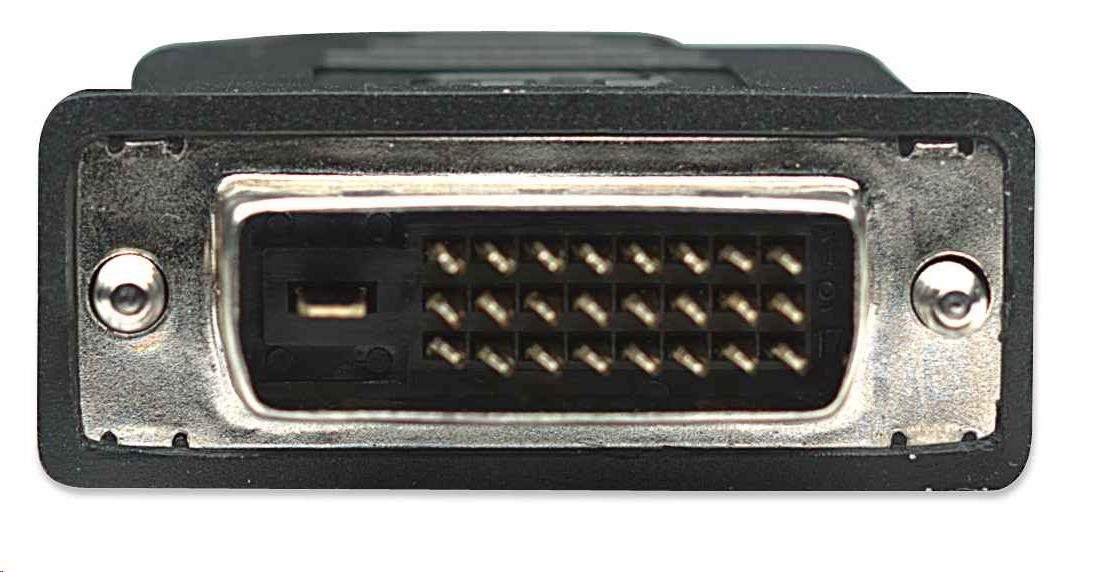

- HDMI 19-pin male to DVI-D 24+1 male; gold plated connections
- Connects an HDMI video source to a DVI-D display
- Fully shielded to reduce EMI and other interference sources
- Supports existing HD (720p, 1080i and 1080p @ 60 Hz), enhanced (480p) and standard (NTSC or PAL) video formats
- Compatible with DVI-I and DVI-D interfaces
- Molded PVC boot
- Lifetime warranty
TECHNICAL SPECIFICATIONS
| Standards and Certifications | - Meets or exceeds existing HDMI and DVI-D standards - Compatible with DVI-I and DVI-D interfaces - UL - ISO9001 |
| Package Contents | HDMI to DVI-D Cable |
| Contacts | - One HDMI 19-pin male - One DVI-D 24+1-pin male - Molded PVC boot - Shielded - 30 AWG connectors |
| Physical | |
| Length | 17 cm (6.7 in.) |
| Weight | 0.05 g (0.12 lbs.) |
| Operating Environment | |
| Operation Temperature | 0 – 40°C (32 – 104°F) |
| Storage Temperature | -20 – 60°C (-4 – 140°F) |
| Humidity (noncondensing) | 5 – 90% |
| Cable | |
| Current rating | 0.5 A DC |
| Withstanding voltage | 300 V DC |
| Insulation resistance | 5 MOhms |
| Conductive resistance | 5 Ohms |
| Length | 1 m (3 ft.) |
.
ParametryPorovnání
Specifikace kabelu / redukce
Adaptér, Redukce
Input
HDMI
Output
DVI
