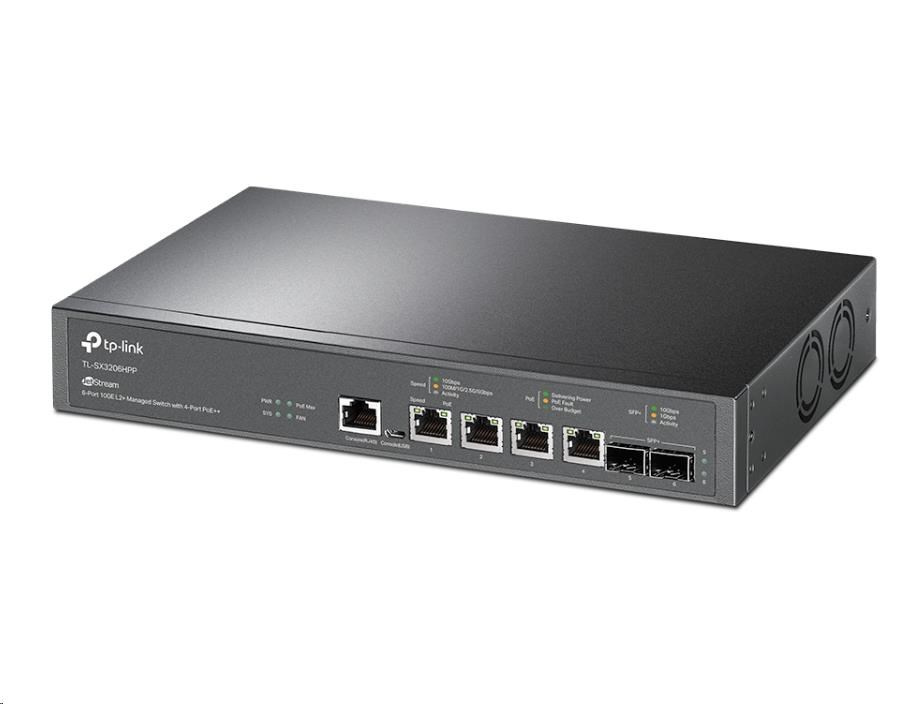

TP-Link OMADA JetStream switch SX3206HPP (4x10GbE,2xSFP+,4xPoE++,200W,2xconsole)
Popis a parametry
TP-Link OMADA JetStream switch SX3206HPP (4x10GbE,2xSFP+,4xPoE++,200W,2xconsole)
TP-Link OMADA switch SX3206HPP
Omada 6portový managed switch 10GE L2+ se 4 porty PoE++
- 4× 10G PoE++ porty s až 60 W PoE výstupem na port
- 2× 10G SFP+ sloty
- 200 W celkový PoE rozpočet
- Centralizovaná správa přes cloud pomocí webu nebo aplikace Omada
- Samostatná správa přes web, CLI, SNMP a RMON
- Statické směrování pomáhá směrovat interní provoz pro vyšší efektivitu
- VLAN, ACL, QoS, IGMP Snooping, OAM a DDM
- ERPS podporuje rychlou ochranu a obnovu v kruhové topologii
- Desktopové / rackové montování
Více informací o TP-Link PoE technologii >
Zjistit více o Omada Cloud SDN>?
Více informací o TP-Link 10G Multi-Gig technologii >
Stránky produktu: https://www.tp-link.com/cz/business-networking/managed-switch/sx3206hpp/
Technické specifikace
| HARDWARE FEATURES | |

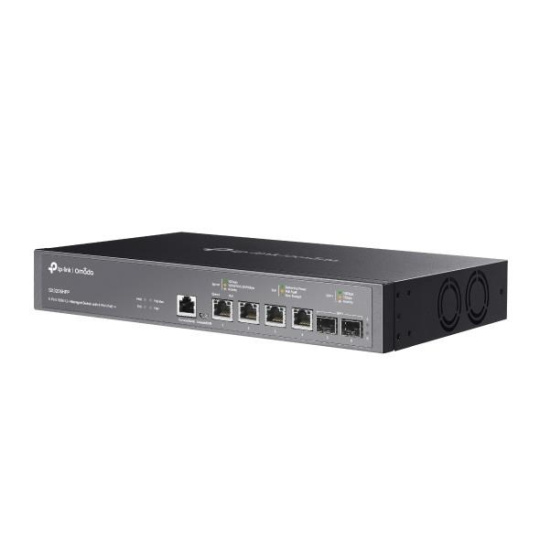

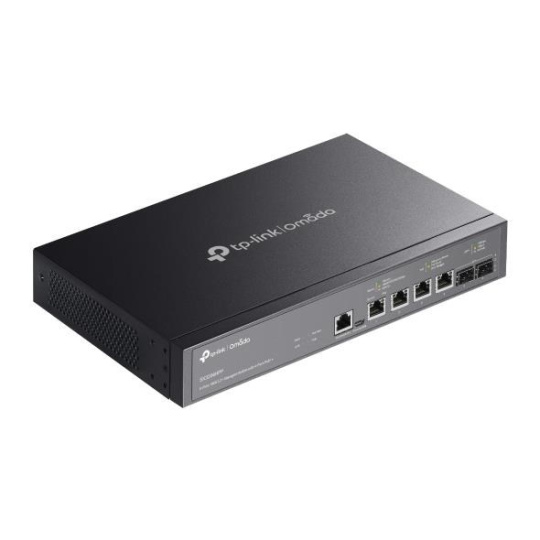

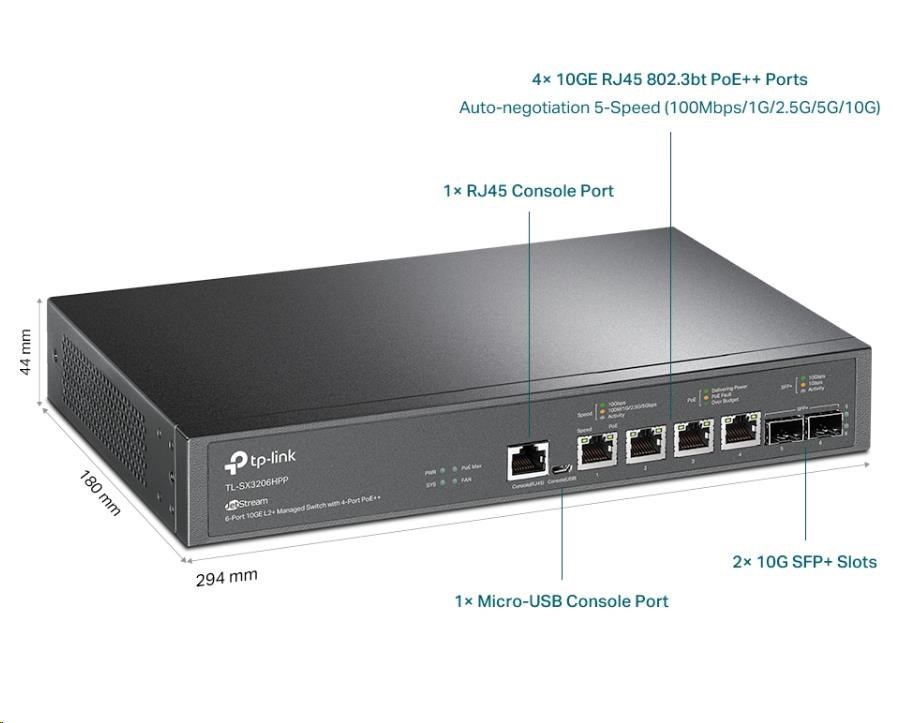

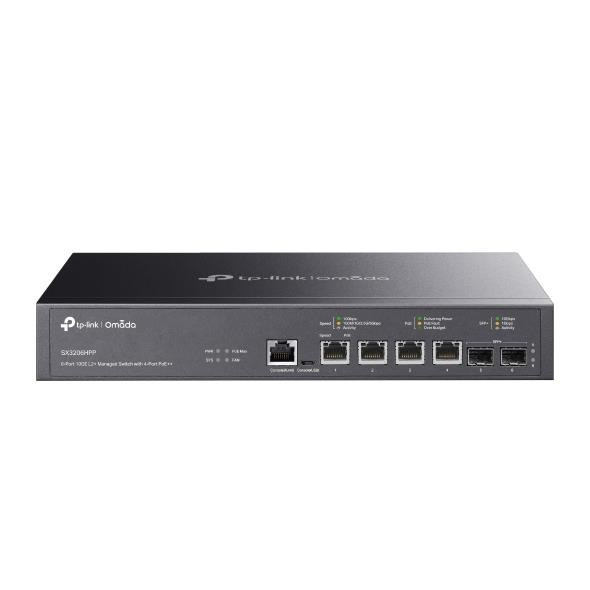

| Interface | • 4× 100/1000/2500/5000/10000 Mbps RJ45 Ports • 2× 10G SFP+ Slots • 1× RJ45 Console Port • 1× Micro-USB Console Port |
| Fan Quantity | 2 |
| Physical Security Lock | ? |

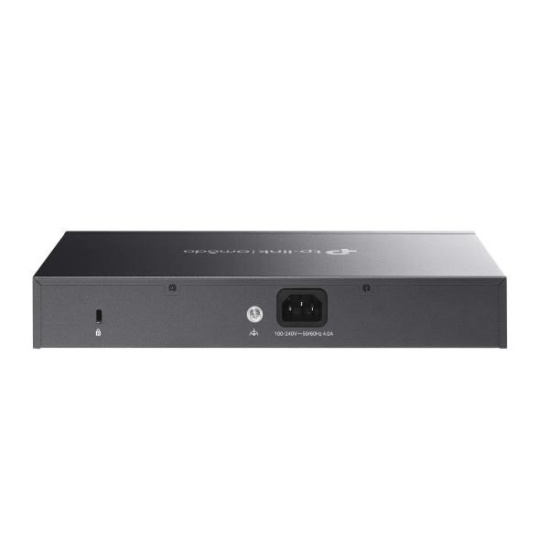

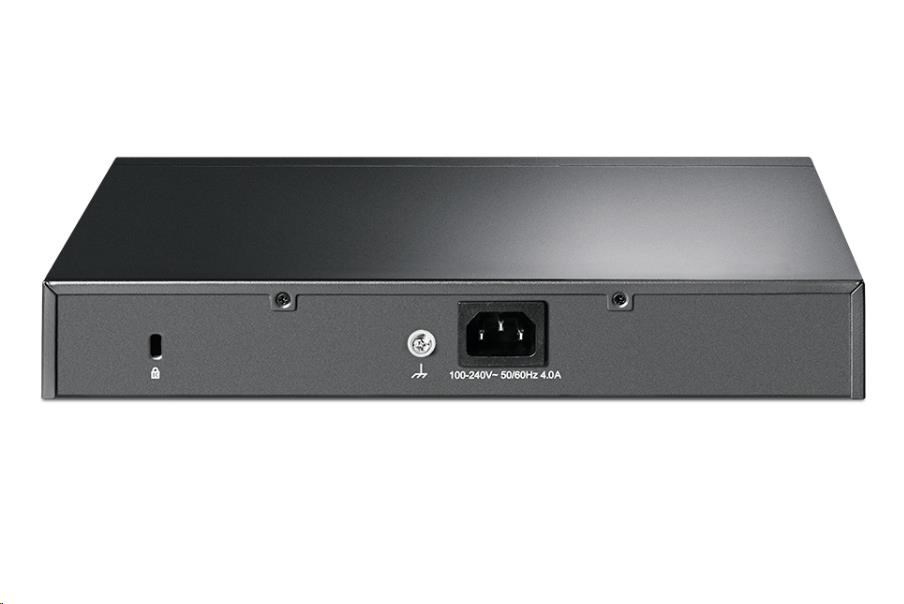

| Power Supply | 100-240 V AC~50/60 Hz |
| PoE Ports (RJ45) | • Standard: 802.3af/at/bt (type 3) compliant** • PoE+ Ports: 4 Ports, up to 60 W per port • Power Budget: 200 W* |
| Dimensions ( W x D x H ) | 11.6×7.1×1.7 in (294×180×44 mm) |
| Mounting | • Rack Mountable • Desktop |
| Max Power Consumption | 244.90 W (110V/60Hz) (with 200 W PD connected) |
| Max Heat Dissipation | 835.67 BTU/h (110 V/60 Hz) (with 200 W PD connected) |
| PERFORMANCE | |
| Switching Capacity | 120 Gbps |
| Packet Forwarding Rate | 89.28 Mpps |
| MAC Address Table | 32 K |
| Packet Buffer Memory | 16 Mbit |
| Jumbo Frame | 9 KB |
| SOFTWARE FEATURES | |
| Quality of Service | • 8 priority queues • 802.1p CoS/DSCP priority • Queue scheduling: SP (Strict Priority), WRR (Weighted Round Robin), SP+WRR • Bandwidth Control: Port/Flow-based Rating Limiting • Smoother Performance • Action for Flows: QoS remark (802.1P Remark, DSCP Remark) |
| L2 and L2+ Features | • 128 IP Interfaces: Support IPv4/IPv6 Interface • Static Routing: 48 IPv4/IPv6 Static Routes • Static ARP: 128 static entries • 512 ARP Entries • Proxy ARP • Gratuitous ARP • DHCP Server • DHCP Relay: DHCP Interface Relay, DHCP VLAN Relay • DHCP L2 Relay • Link Aggregation • Spanning Tree Protocol • Loopback Detection • 802.3x Flow Control • Mirroring |
| L2 Multicast | • Supports 1000 (IPv4, IPv6) IGMP groups • IGMP Snooping • IGMP Authentication • Multicast VLAN Registration (MVR) • MLD Snooping • Multicast Filtering: 256 profiles and 16 entries per profile |
| Advanced Features | • Automatic Device Discovery† • Batch Configuration† • Batch Firmware Upgrading† • Intelligent Network Monitoring† • Abnormal Event Warnings† • Unified Configuration† • Reboot Schedule† ISP Features***: • L2PT (Layer 2 Protocol Tunneling) • Device Link Detect Protocol (DLDP) • PPPoE ID Insertion • ERPS • 802.3ah Ethernet Link OAM • sFlow • DDM |
| VLAN | • VLAN Group: Max 4K VLAN Groups • 802.1q Tagged VLAN • MAC VLAN: 30 Entries • Protocol VLAN: Protocol Template 16, Protocol VLAN 16 • Private VLAN • GVRP • VLAN VPN: VLAN Mapping, VLAN Replace • Voice VLAN |
| Access Control List | • Time-based ACL • MAC ACL: Source MAC, Destination MAC, VLAN ID, User Priority, Ether Type • IP ACL: Source IP, Destination IP, Fragment, IP Protocol, TCP Flag, TCP/UDP Port, DSCP/IP TOS • Combined ACL • Packet Content ACL • IPv6 ACL • Policy: Mirroring, Redirect, Rate Limit, QoS Remark • ACL applies to Port/VLAN |
| Security | • IP-MAC-Port Binding - 512 Entries - DHCP Snooping - ARP Inspection - IPv4 Source Guard: 100 Entries • IPv6-MAC-Port Binding - 512 Entries - DHCPv6 Snooping - ND Detection - ND Snooping - IPv6 Source Guard: 100 Entries • DoS Defend • DHCP Filter • Static/Dynamic Port Security: Up to 64 MAC addresses per port • Broadcast/Multicast/Unicast Storm Control: kbps/ratio/pps control mode • 802.1X - Port-based authentication - Mac-base authentication - VLAN Assignment - MAB - Guest VLAN - Radius authentication and accountability support • AAA (including TACACS+) • Port Isolation • Secure web management through HTTPS with SSLv3/TLS 1.2 • Secure Command Line Interface (CLI) management with SSHv1/SSHv2 • IP/Port/MAC-based access control |
| IPv6 | • IPv6 Dual IPv4/IPv6 • Multicast Listener Discovery (MLD) Snooping • IPv6 ACL • IPv6 Interface • Static IPv6 Routing • IPv6 neighbor discovery (ND) • Path maximum transmission unit (MTU) discovery • Internet Control Message Protocol (ICMP) version 6 • TCPv6/UDPv6 • IPv6 applications: DHCPv6 Client, Ping6, Tracert6, Telnet (v6), IPv6 SNMP, IPv6 SSH, IPv6 SSL, Http/Https, IPv6 TFTP |
| MIBs | • MIB II (RFC1213) • Interface MIB (RFC2233) • Ethernet Interface MIB (RFC1643) • Bridge MIB (RFC1493) • P/Q-Bridge MIB (RFC2674) • RMON MIB (RFC2819) • RMON2 MIB (RFC2021) • Radius Accounting Client MIB (RFC2620) • Radius Authentication Client MIB (RFC2618) • Remote Ping, Traceroute MIB (RFC2925) • Support TP-Link private MIB |
| MANAGEMENT | |
| Omada App | Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| Centralized Management | • Omada Cloud-Based Controller • Omada Hardware Controller • Omada Software Controller |
| Cloud Access | Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| Zero-Touch Provisioning | Yes. Requiring the use of Omada Cloud-Based Controller. |
| Management Features | • Web-based GUI • Command Line Interface (CLI) through the console port, telnet • SNMP v1/v2c/v3: Trap/Inform, RMON (1,2,3,9 groups) • SDM Template • DHCP/BOOTP Client • 802.1ab LLDP/LLDP-MED • DHCP AutoInstall • Dual Image, Dual Configuration • CPU Monitoring • Cable Diagnostics • EEE • Password Recovery • SNTP • System Log |
| OTHERS | |
| Certification | CE, FCC, RoHS |
| Package Contents | • SX3206HPP Switch • Power Cord • Quick Installation Guide • Rackmount Kit • Rubber Feet |
| System Requirements | Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux. |
| Environment | • Operating Temperature: 0–50 ? (32–122 ?); • Storage Temperature: -40–70 ? (-40–158 ?) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing |
ParametryPorovnání
Provedení
Rack mounted 19"
Provedení
Desktop
Technologie
10 Gigabit ethernet + 10 Gigabit optika
Management
Web
Management
SNMP/RMON
Vlastnosti switche
Funkce POE po portech
Ventilátor
Ano
Přenosová rychlost LAN (Mb/s)
10000
Funkce
L2+
Funkce
Web management/Smart switch
Funkce
QoS (Quality of service)
Funkce
VLAN (virtual local area network)
Funkce
L2
Funkce
PoE (Power over ethernet)
Funkce
DHCP snooping
Podporované standardy PoE
802.3af
Podporované standardy PoE
802.3at
Podporované standardy PoE
802.3bt
Počet portů LAN
4
Maximální počet portů
6
Počet SFP+ portů
2
PoE budget (W)
200
Počet PoE++ portů
4
