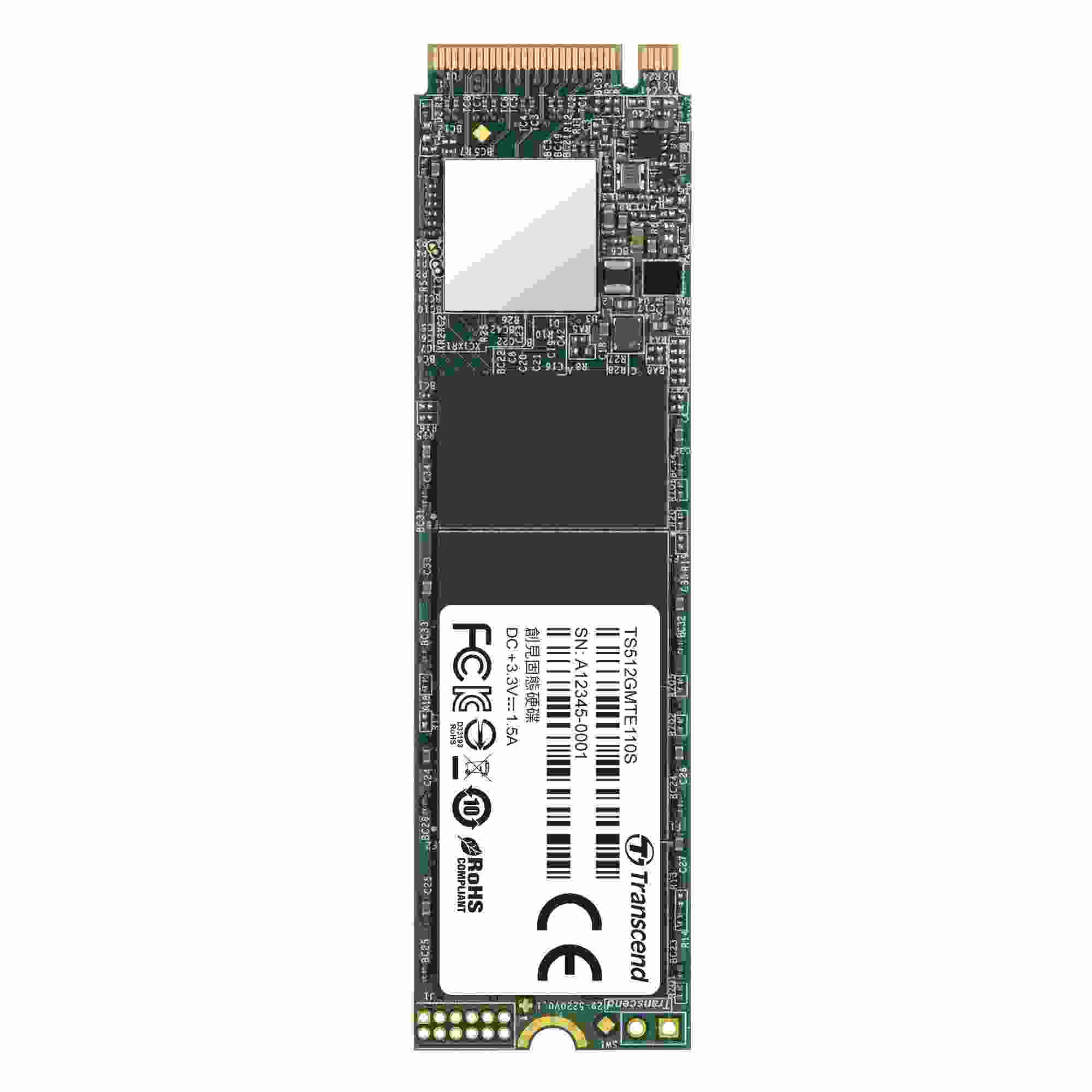

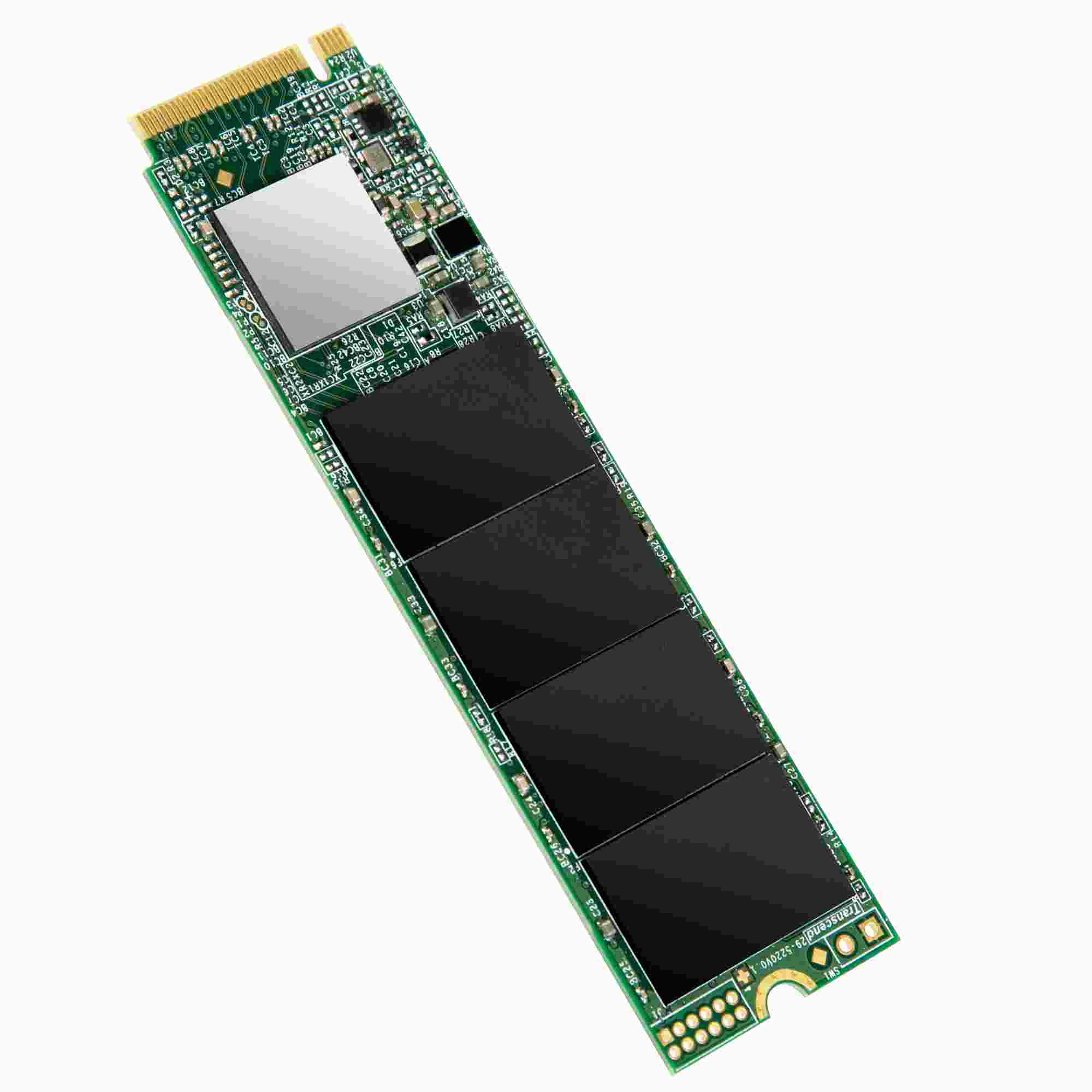

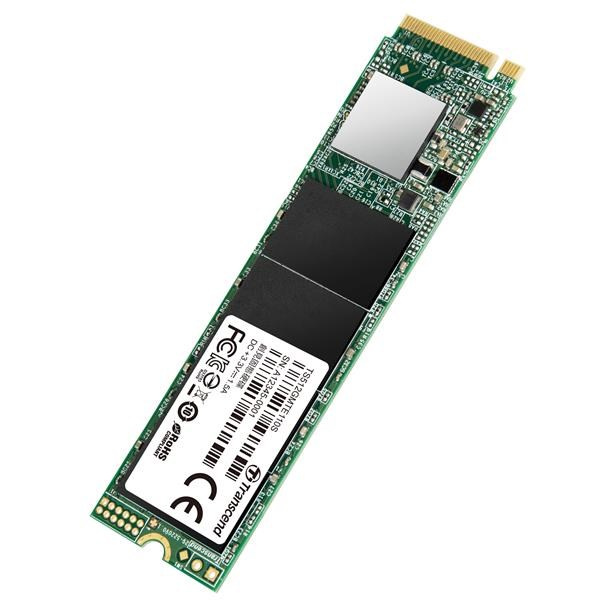

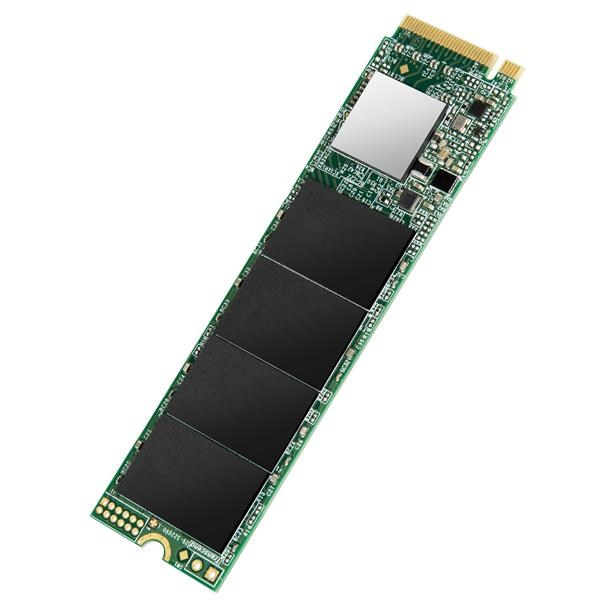

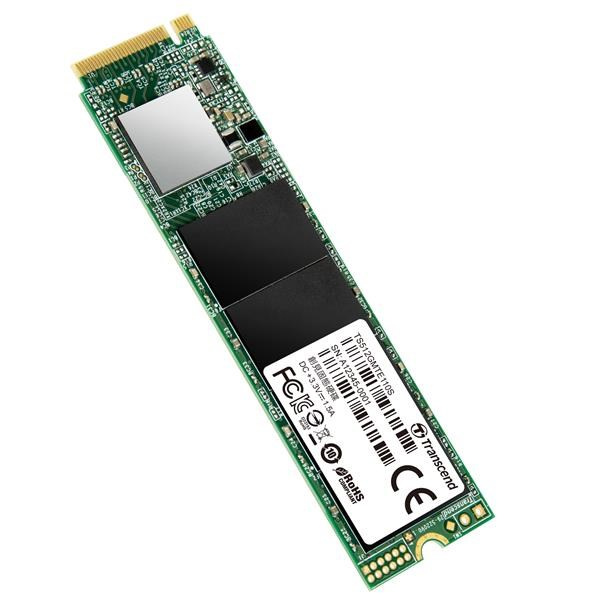

TRANSCEND SSD 110S 512GB, M.2 2280, PCIe Gen3x4, 3D TLC, DRAM-less
TRANSCEND SSD 110S 512GB, M.2 2280, PCIe Gen3x4, 3D TLC, DRAM-less
PCIe SSD 110S
Transcend's PCIe SSD 110S utilizes the PCI Express® Gen3 x4 interface supported by the latest NVMe standard, to unleash next-generation performance. The PCIe SSD 110S aims at high-end applications, such as digital audio/video production, gaming, and enterprise use, which require constant processing heavy workloads with no system lags or slowdowns of any kind. Powered by 3D NAND flash memory, the PCIe SSD 110S gives you not only fast transfer speeds but unmatched reliability.
Compelling performance for high-end applications
Transcend's PCIe SSD 110S follows NVMe 1.3 and utilizes the PCIe Gen3 x4 interface, meaning four lanes are used for transmitting and receiving data simultaneously, resulting in compelling performance of up to 1,800MB/s read and 1,500MB/s write.
Understanding the PCIe interface
PCIe (or PCI Express®) is a much faster interface than SATA (or Serial ATA) for connecting a host computer to solid-state storage devices over one or more lanes consisting of one transmit and one receive serial interface in each lane, meaning it can better fulfill new performance requirements.
Understanding the NVMe standard
NVMe (or NVM Express®) is a host controller interface standard designed to address the needs of enterprise and client applications that utilize PCI Express-based solid-state storage. NVMe calls for better performance vectors than AHCI (Advanced Host Controller Interface), including scalable bandwidth, increased IOPS, and low latency.
3D expansion to break through limits
Unlike the existing planar NAND chips, 3D NAND flash is a type of flash memory in which the memory cells are stacked vertically in multiple layers. 3D NAND is developed to break through density limitations of the 2D planar NAND, and thus can deliver a greater level of performance and endurance.
Better endurance, higher reliability
Transcend's PCIe SSD 110S is engineered with LDPC (Low-Density Parity Check) coding, a powerful ECC algorithm, to keep data secure. Manufactured with high-quality TLC NAND flash chips, and engineered dynamic thermal throttling mechanism, the PCIe SSD 110S guarantees superior endurance and stability for high-end applications.
Transcend SSD Scope software
To keep your Transcend SSD running fast and error-free, Transcend's SSD Scope software application is available for download free of charge. Monitor your SSD's health status with S.M.A.R.T. technology, enable the TRIM command for optimum write speeds, keep your SSD's firmware up-to-date, and migrate data from your original drive to a new SSD with just a few clicks.
Guaranteed quality
To ensure the utmost level of quality, Transcend SSDs undergo rigorous testing at all stages of production, including tests for vibration, temperature and humidity, speed, and functionality.
TECHNICAL SPECIFICATIONS
| APPEARANCE | |
| Dimensions (Max.) | 80 mm x 22 mm x 3.58 mm (3.15" x 0.87" x 0.14") |
| Weight (Max.) | 8 g |
| INTERFACE | |
| Bus Interface | NVMe PCIe Gen3 x4 |
| STORAGE | |
| Flash Type | 3D NAND flash |
| Capacity | 512 GB |
| OPERATING ENVIRONMENT | |
| Operating Temperature | 0°C (32°F) ~ 70°C (158°F) |
| Operating Voltage | 3.3V±5% |
| PERFORMANCE | |
| Sequential Read/Write (CrystalDiskMark) | 1,700/900 MB/s |
| 4K Random Read/Write (IOmeter) | 160,000/140,000 IOPS |
| Terabytes Written (TBW) | 200 TBW |
| Mean Time Between Failures (MTBF) | 1,000,000 hour(s) |
| Drive Writes Per Day (DWPD) | 0.2 (5 yrs) |
| Note | * Speed may vary due to host hardware, software, usage, and storage capacity. * The workload used to rate DWPD may be different from your actual workload, which may vary due to host hardware, software, usage, and storage capacity. * Some motherboards only provide PCIe x2 connections for the M.2 slot, creating a bottleneck on even the fastest drives. |
| WARRANTY | |
| Certificate | CE / FCC / BSMI |
| Warranty | Five-year Limited Warranty Warranty does not apply when SSD Scope's wear-out indicator displays 0% within the warranty coverage. |
| SYSTEM REQUIREMENT | |
| Operating System | Microsoft Windows 7 (additional driver required) Microsoft Windows 8 (additional driver required) Microsoft Windows 10 Linux Kernel 2.6.31 or later |
| Note | Please make sure that your computer has a M.2 slot. |
.
