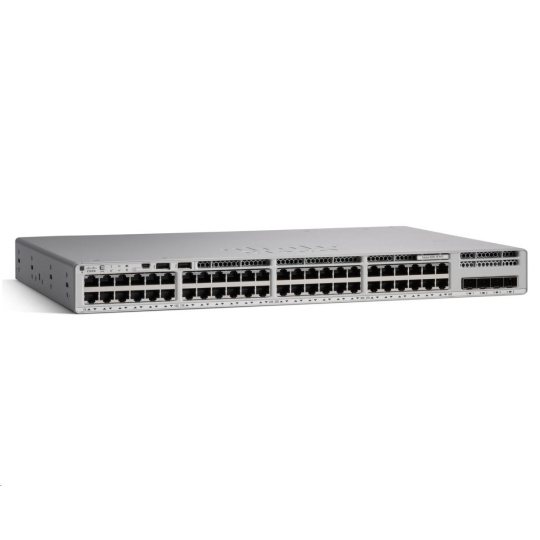

Cisco Catalyst C9200L-48P-4G-E 48-port, PoE, 4x1G
Popis a parametry
Cisco Catalyst C9200L-48P-4G-E 48-port, PoE, 4x1G
Up to 48 ports of full Power over Ethernet Plus (PoE+) capability Resiliency with Field-Replaceable Units (FRU) and redundant power supply, fans, and modular uplinks Flexible downlink options with data or PoE+ Operational efficiency with optional backplane stacking, supporting stacking bandwidth up to 160 Gbps UADP 2.0 Mini with integrated CPU offers customers optimized scale with better cost structure Enhanced security with AES-128 MACsec encryption, policy-based segmentation, and trustworthy systems Layer 3 capabilities, including OSPF, EIGRP, ISIS, RIP, and routed access Advanced network monitoring using Full Flexible NetFlow Cisco Software-Defined Access (SD-Access): Simplified operations and deployment with policy-based automation from edge to cloud managed with Cisco Identity Services Engine (ISE) Network assurance and improved resolution time through Cisco DNA Center Plug and Play (PnP) enabled: A simple, secure, unified, and integrated offering to ease new branch or campus device rollouts or updates to an existing network Cisco IOS XE: A Common Licensing based operating system for the enterprise Cisco Catalyst 9000 product family with support for model-driven programmability and streaming telemetry ASIC with programmable pipeline and micro-engine capabilities, along with template-based, configurable allocation of Layer 2 and Layer 3 forwarding, Access Control Lists (ACLs), and Quality of Service (QoS) entries Product Brochure (pdf) Marketing text Specs Marketing text Extend Intent-Based Networking Everywhere Cisco® Catalyst® 9200 Series switches extend the power of intent-based networking and Catalyst 9000 hardware and software innovation to a broader set of deployments. With its family pedigree, Catalyst 9200 Series switches offer simplicity without compromise – it is secure, always on, and IT simplified. As foundational building blocks for the Cisco Digital Network Architecture, Catalyst 9200 Series switches help customers simplify complexity, optimize IT, and reduce operational costs by leveraging intelligence, automation and human expertise that no other vendor can deliver regardless of where you are in the intent-based networking journey. Catalyst 9200 Series switches provide security features that protect the integrity of the hardware as well as the software and all data that flows through the switch. It provides resiliency that keeps your business up and running seamlessly. Combine that with open APIs of Cisco IOS XE and programmability of the UADP ASIC technology, Catalyst 9200 Series switches give you what you need now with investment protection on future innovations. With full PoE+ capability, power and fan redundancy, stacking bandwidth up to 160 Gbps, modular uplinks, Layer 3 feature support, and cold patching, Catalyst 9200 Series switches are the industry’s unparalleled solution with differentiated resiliency and progressive architecture for cost-effective branch-office access. Lifetime Specs Management features Switch type What switch device has, managed or unmanaged. Managed Switch layer A network switch is a computer networking device that links networking segments. A switch has different layers, such as layer 2 (a network bridge, operating at the data link layer, interconnecting a small number of devices) and layer 4 (can act as a firewall, amongst other things). L3 Quality of Service (QoS) support Web-based management Using a website/web application to manage something. Traffic classification ARP inspection Configuring Location Settings (CLI) MIB support BRIDGE-MIB, CISCO-BRIDGE-EXT-MIB, CISCO-BULK-FILE-MIB, CISCO-CABLE-DIAG-MIB, CISCO-CALLHOME-MIB, CISCO-CEF-MIB, CISCO-CIRCUIT-INTERFACE-MIB, CISCO-CONFIG-COPY-MIB, CISCO-CONFIG-MAN-MIB, CISCO-DEVICE-LOCATION-MIB, CISCO-DHCP-SNOOPING-MIB, CISCO-EIGRP-MIB, CISCO-EMBEDDED-EVENT-MGR-MIB, CISCO-ENTITY-FRU-CONTROL-MIB, CISCO-ENTITY-SENSOR-MIB, CISCO-ENTITY-VENDORTYPE-OID-MIB, CISCO-ERR-DISABLE-MIB, CISCO-FLASH-MIB, CISCO-FLOW-MONITOR-MIB, CISCO-FTP-CLIENT-MIB, CISCO-HSRP-EXT-MIB, CISCO-HSRP-MIB, CISCO-IETF-BFD-MIB, CISCO-IETF-PPVPN-MPLS-VPN-MIB, CISCO-IETF-PW-MPLS-MIB, CISCO-IF-EXTENSION-MIB, CISCO-IGMP-FILTER-MIB, CISCO-IMAGE-LICENSE-MGMT-MIB, CISCO-IMAGE-MIB, CISCO-IP-CBR-METRICS-MIB, CISCO-IP-STAT-MIB, CISCO-IP-TAP-MIB, CISCO-IP-URPF-MIB, CISCO-IPSEC-FLOW-MONITOR-MIB, CISCO-IPSEC-MIB, CISCO-IPSEC-PROVISIONING-MIB, CISCO-IPSLA-AUTOMEASURE-MIB, CISCO-IPSLA-ECHO-MIB, CISCO-IPSLA-JITTER-MIB, CISCO-L2-CONTROL-MIB, CISCO-L2L3-INTERFACE-CONFIG-MIB, CISCO-LAG-MIB, CISCO-LICENSE-MGMT-MIB, CISCO-LOCAL-AUTH-USER-MIB, CISCO-MAC-NOTIFICATION-MIB, CISCO-MDI-METRICS-MIB, CISCO-MEDIA-METRICS-MIB, CISCO-MEMORY-POOL-MIB, CISCO-MPLS-LSR-EXT-STD-MIB, CISCO-NBAR-PROTOCOL-DISCOVERY-MIB, CISCO-NHRP-EXT-MIB, CISCO-NTP-MIB, CISCO-PAGP-MIB, CISCO-PORT-SECURITY-MIB, CISCO-PORT-STORM-CONTROL-MIB, CISCO-POWER-ETHERNET-EXT-MIB, CISCO-PRIVATE-VLAN-MIB, CISCO-PROCESS-MIB, CISCO-PRODUCTS-MIB, CISCO-RF-MIB, CISCO-RTP-METRICS-MIB ,CISCO-RTTMON-ICMP-MIB, CISCO-STACKWISE-MIB, CISCO-STP-EXTENSIONS-MIB, CISCO-SYSLOG-MIB, CISCO-TCP-MIB, CISCO-UDLDP-MIB, CISCO-VLAN-IFTABLE-RELATIONSHIP-MIB, ENTITY-MIB, HC-ALARM-MIB, HC-RMON-MIB, IEEE8023-LAG-MIB, IF-MIB, IP-FORWARD-MIB, IP-MIB, LLDP-EXT-MED-MIB, LLDP-MIB, MAU-MIB, MPLS-L3VPN-STD-MIB, MPLS-LSR-STD-MIB, MPLS-VPN-MIB, OLD-CISCO-CHASSIS-MIB, OLD-CISCO-CPU-MIB, OLD-CISCO-INTERFACES-MIB, OLD-CISCO-IP-MIB, OLD-CISCO-MEMORY-MIB, OLD-CISCO-SYS-MIB, OLD-CISCO-TCP-MIB, OLD-CISCO-TS-MIB, POWER-ETHERNET-MIB, RFC1213-MIB, RMON-MIB, RMON2-MIB, SMON-MIB, SNMPv2-MIB, SONET-MIB, TCP-MIB, UDP-MIB Ports & interfaces Basic switching RJ-45 Ethernet ports quantity The number of basic switching RJ-45 Ethernet ports (sockets). 48 Basic switching RJ-45 Ethernet ports type The type/category of basic switching RJ-45 Ethernet ports (sockets). Gigabit Ethernet (10/100/1000) Gigabit Ethernet (copper) ports quantity 4 Power connector AC-in jack Networking Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. IEEE 802.1D,IEEE 802.1Q,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3af,IEEE 802.3at,IEEE 802.3bz,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z 10G support The product can use Oracle 10G, which is a database management system introduced in 2003. Copper ethernet cabling technology 10BASE-T,10GBASE-T,100BASE-TX,1000BASE-T Full duplex A full-duplex system allows communication in both directions, and unlike half-duplex, allows this to happen simultaneously. IP routing Routing entries 3000 Flow control support Spanning tree protocol VLAN support A Virtual Local Area Network (VLAN) consists of a group of computers and switches that can be physically distributed over different networks and buildings, but form one LAN on a logical level. Number of VLANs 1024 Data transmission Switching capacity The data transfer capacity of the switch per second. 104 Gbit/s Forwarding rate 77.38 Mpps MAC address table The MAC address is the 'Media Access Control Address'. It is a unique address given to a network interface controller (NIC) in a device. A MAC address table shows the addresses in a table format. 16000 entries Jumbo frames support Jumbo frames 9198 Packet forwarding rate (1 Gbps) 77.38 pps Packet buffer memory 6 MB Security Access Control List (ACL) Security algorithms Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product. 128-bit AES Multicast features Multicast support Multicast MAC address table 1000 entries IPv4 multicast entries 3000 IPv6 multicast entries 1500 Protocols Management protocols SNMPv1/v2c/v3 Routing protocols CDP,EIGRP,OSPF,RIP,VRRP Design Product colour The colour e.g. red, blue, green, black, white. Grey Electromagnetic compatibility List of countries and their respective regulatory agency standards with which the product complies. 47 CFR Part 15, CISPR 22 Class A, CISPR 32 Class A, CNS 13438, EN 300 386, EN 55022 Class A, EN 55032 Class A, EN61000-3-2, EN61000-3-3, ICES-003 Class A, KN 32, TCVN 7189 Class A, V-3 Class A, CISPR 24, EN 300 386, EN 55024, KN 35, TCVN 7317 Certification RoHS, IEC 60950-1, UL 60950-1, CAN/CSA C22.2 No. 60950-1, EN 60950-1, AS/NZS 60950.1, Class I Equipment Performance Memory type Type of memory in the device e.g. DDR3, SRAM (Static RAM). DRAM Internal memory The amount of memory, usually measured in bytes (e.g. MB, GB), which is installed in the system's hardware. 2000 MB Flash memory 4000 MB Power Power supply included There is a power supply with this product. Redundant power supply (RPS) support Additional power supply which can run a computer if the main power supply fails. AC input voltage The voltage of the AC electricity that is inputted into the product. 100 - 240 V AC input frequency 50 - 60 Hz Input current 12 - 6 A Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. 125 W Power over Ethernet (PoE) Power over Ethernet (PoE) The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras. Power over Ethernet plus (PoE+) ports quantity 48 Operational conditions Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. -5 - 45 °C Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. -40 - 70 °C Operating relative humidity (H-H) 5 - 90% Operating altitude 0 - 3000 m Weight & dimensions Width The measurement or extent of something from side to side. 445 mm Depth The distance from the front to the back of something. 288 mm Height The measurement of the product from head to foot or from base to top. 44 mm Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. 4.35 kg Packaging data Package type The type of product package e.g. box. Box.
ParametryPorovnání
Provedení
Rack mounted 19"
Technologie
Gigabit Ethernet 1000Mbps
Cisco Catalyst C9200L-48P-4G-E 48-port, PoE, 4x1G
