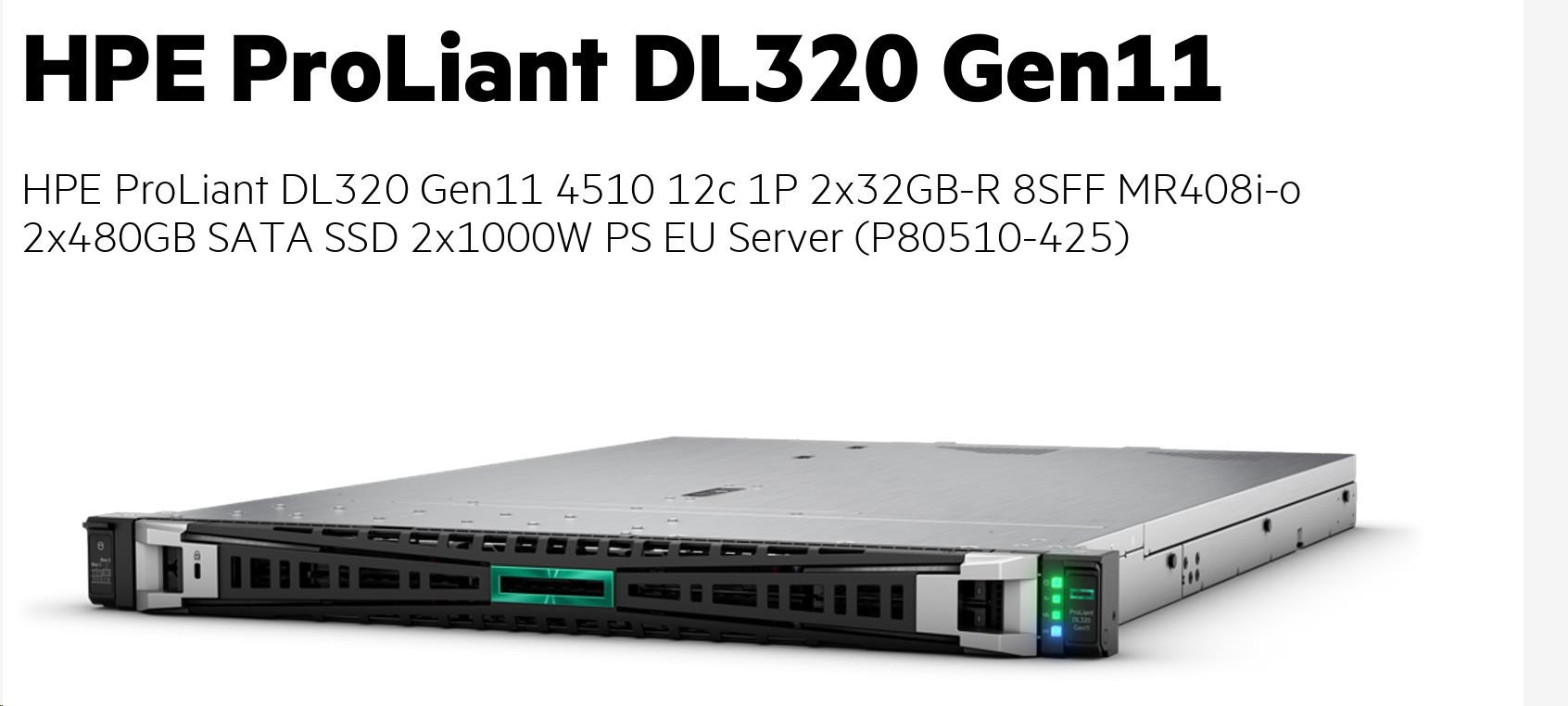

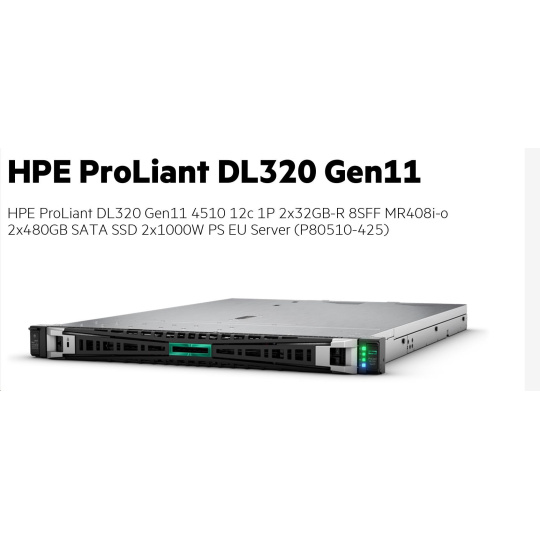

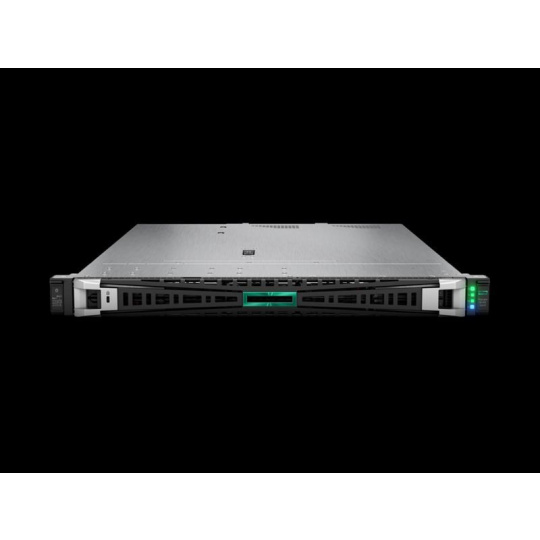

HPE PL DL320g11 4510 (2.4/12C) 2x32G (p64706) 2x480G (P40497) MR408i-o 8SFF 2x1000W 2x1Gb Smart Choice
HPE PL DL320g11 4510 (2.4/12C) 2x32G (p64706) 2x480G (P40497) MR408i-o 8SFF 2x1000W 2x1Gb Smart Choice
HPE PL DL320g11 4510 (2.4/12C) 2x32G (p64706) 2x480G (P40497) MR408i-o 8SFF 2x1000W 2x1Gb Smart Choice

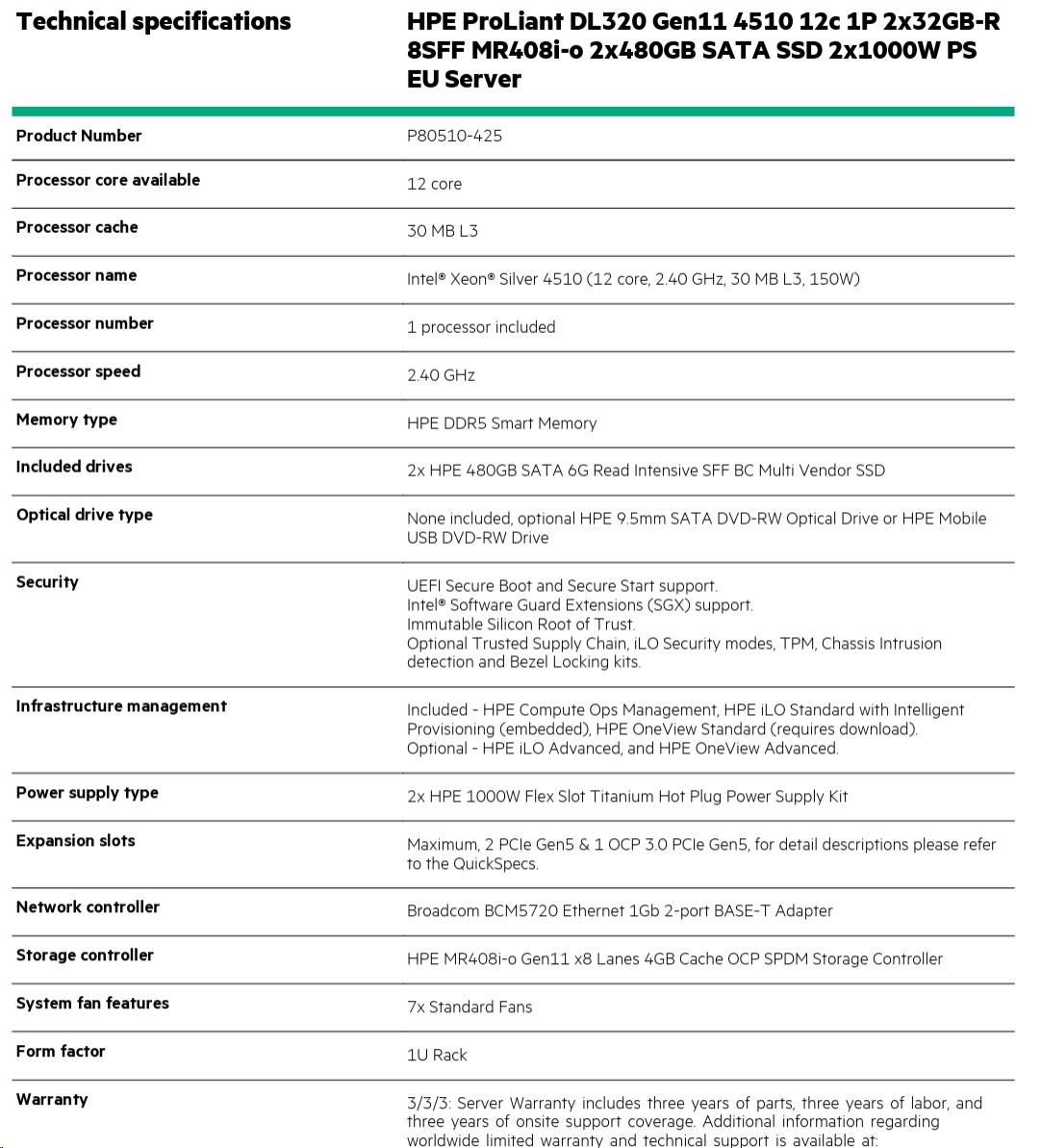

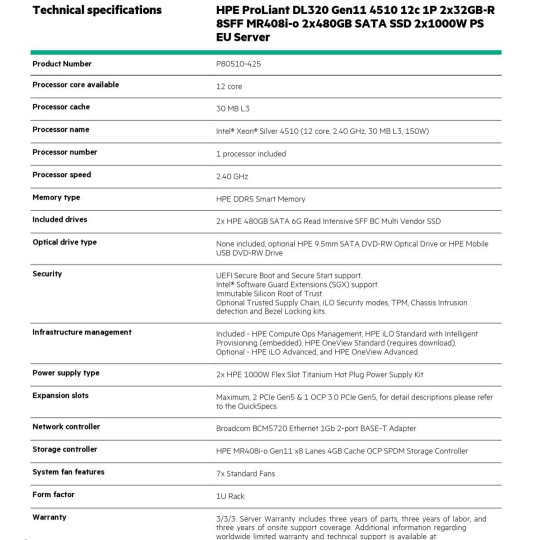

SKU number P80510-425
Model Name HPE PL DL320g11 4510 (2.4/12C) 2x32G 2x480G SATA SSD MR408i-o 8SFFBCU3 2x1000W 2x1Gb 1U EIR
Chassis 8SFF
Backplane 8SFF x1Trimode U.3 Basic Carrier Backplane
Number of Processors 1 socket
Processor 4510 (12 core, 2.4 GHz, 150W)
Memory 64 GB (2x32 GB, 5600 MT/s) Notes: Runs at 4400 MT/s due to processor limitation.
Network Controller HPE embedded 2-port 1 GbE Ethernet adapter
Storage Controller Embedded SATA controller (AHCI or Intel SATA software RAID controller)
Hard Drive 2x480G SSD SATA
Optical Drive Bay Not included (Optical Drive options available)
PCI-Express Slots 2 x16 FHHL PCIe Gen5; 1 OCP 3.0 Slot
Power Supply 2 x 1000W Fans 5 Standard
Management HPE iLO6
Security TPM (Trusted Platform Module)
Rail Kit Easy Install w/o CMA
Form Factor 1U Rack
Warranty Server Warranty includes 3-Year Parts, 3-Year Labor, 3-Year Onsite support with next business day response
Serial 1 port - Optional

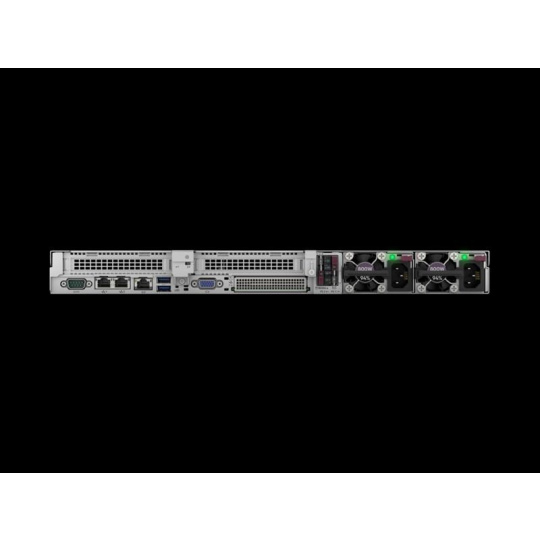

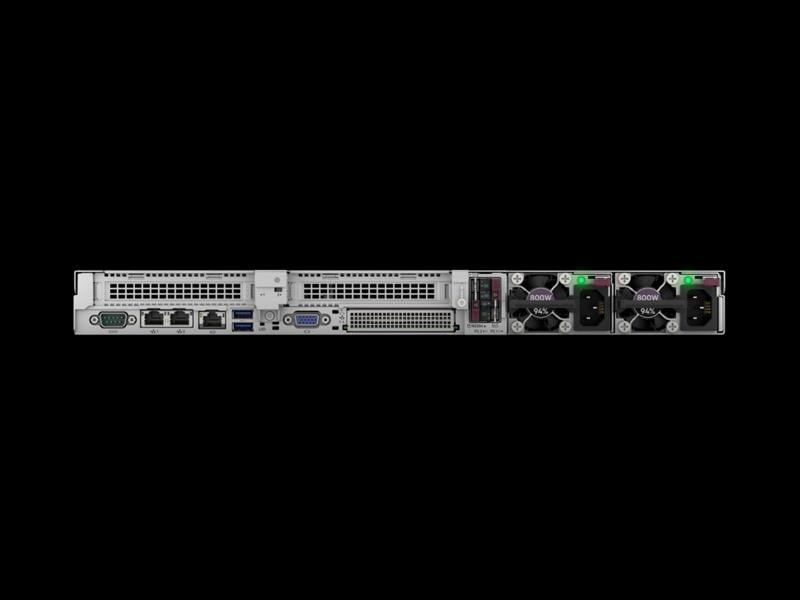

Video 1 front Display port (optional) + 1 Rear - VGA port (standard on all chassis types)
Network Ports 2x 1GbE embedded NIC (standard on all chassis types), Choice of OCP or standup card, supporting a wide arrange of NIC adapters
iLO Remote Mgmt Port 1Gb Dedicated
Front iLO Service Port 1 std
USB 4 standard on all models: 1 front(USB 3.2 Gen1), 2 rear (USB 3.2 Gen1), 1 internal (USB 2.0) +1 optional USB 2.0 front in 4LFF & 8SFF Notes: USB 3.2 Gen1 is referred to as USB 3.0 in some marketing documents.
Operating Systems and Virtualization Software
.
