Optoma projektor ZK507 (DLP, LASER, FULL 3D, 4k, 3840x2160, 5000 ANSI, 300 000:1, VGA, HDMI, repro 2x5W )
Optoma projektor ZK507 (DLP, LASER, FULL 3D, 4k, 3840x2160, 5000 ANSI, 300 000:1, VGA, HDMI, repro 2x5W )
Display technology DLP
Resolution UHD (3840x2160)
Brightness 5,000 lumens
Contrast ratio300,000:1
Native aspect ratio 16:9
Aspect ratio - compatible 4:3,16:9
Has vertical auto keystone correction Yes
Displayable colours (millions) 1073.4
Horizontal scan rate 31 ~ 135Khz
Vertical scan rate 24 ~ 120Hz
Uniformity 70%
Screen size 0.67m ~ 7.68m (26.45" ~ 302.2") diagonal
Light source type Laser
LASER life 20,000 hours
Throw ratio 1.39:1 ~ 2.22:1
Projection distance (m) 1.3m - 9.3m
Zoom 1.6
Zoom type Manual
Focal length (mm) 20.91 ~ 32.62
Lens shift Vertical +15%, Horizontal: +/-0%
Native offset 100%
Lens shift Yes - see documentation for details

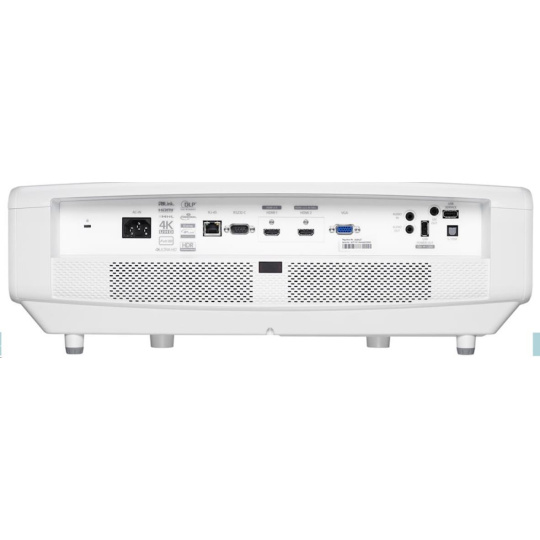

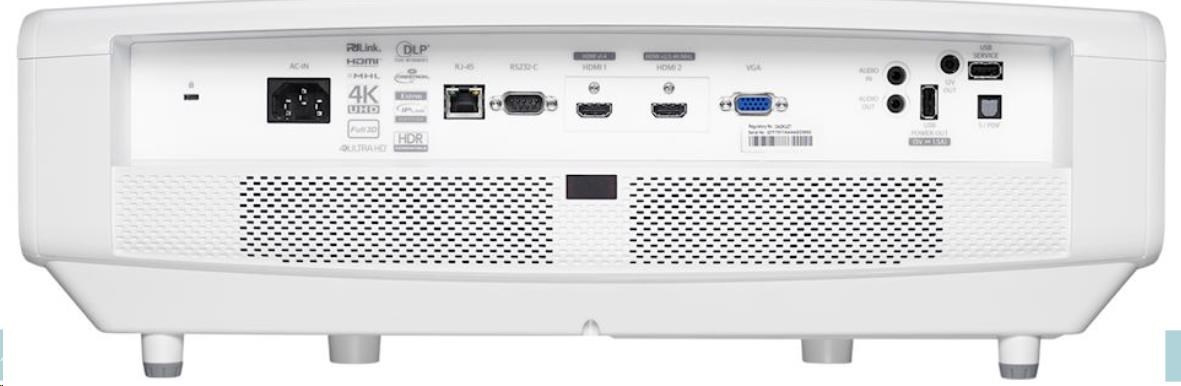

Connections
Inputs 1 x HDMI 2.0, 1 x HDMI 1.4a 3D support, 1 x VGA (YPbPr/RGB), 1 x Audio 3.5mm
Outputs 1 x Audio 3.5mm, 1 x S/PDIF, 1 x USB-A power 1.5A
Control 1 x USB-A service, 1 x RS232, 1 x RJ45, 1 x 12V trigger
Noise level (typical) 30dB
PC compatibility UHD, WUXGA, FHD, UXGA, SXGA, WXGA, HD, XGA, SVGA, VGA, Mac
2D compatibility UHD: 2160p(24/50/60Hz) / HDTV: 720p(50/60Hz), 1080i(50/60Hz), 1080p(24/50/60Hz) / SDTV : 480i/p, 576i/p
3D compatibility Frame packing, Side-by-Side, Top-and-Bottom
3D Full 3D
Security Security bar, Kensington Lock, Password protected interface
24/7 operation Yes
Operating conditions 5°C ~ 40°C, Max. Humidity 85%, Max. Altitude 3000m
Remote control Backlit ProAV remote
Speaker count 2
Watts per speaker 5W
LAN - control Yes
