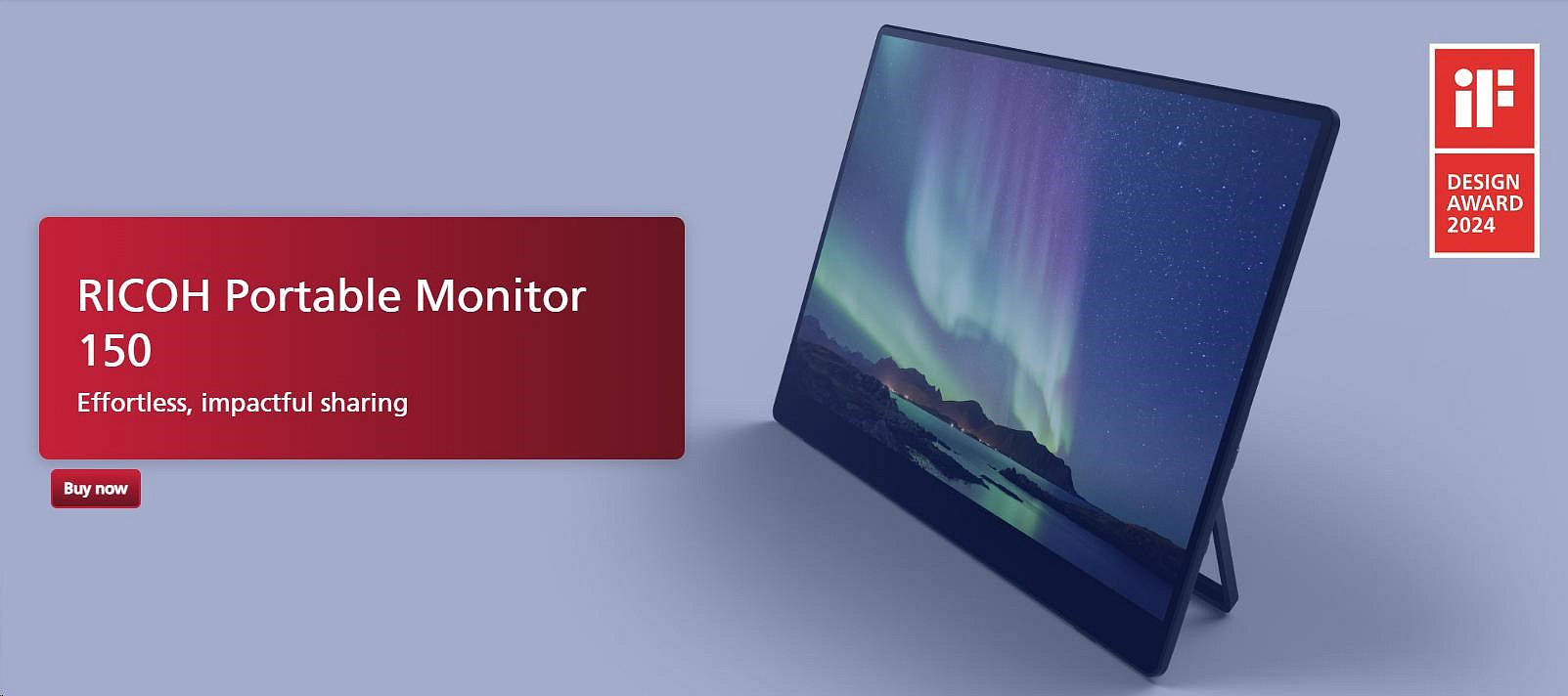

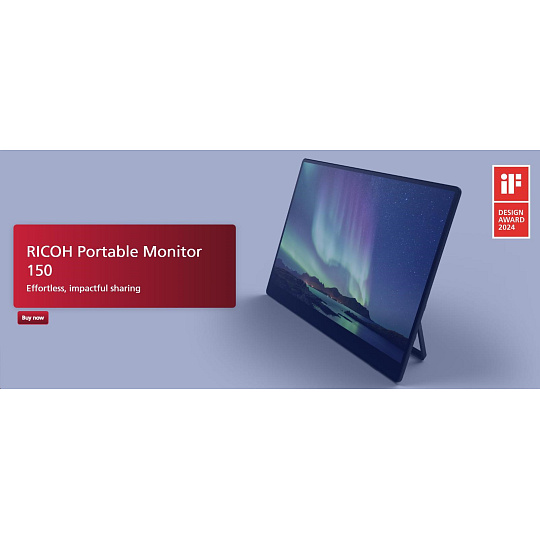

RICOH Portable Monitor 150
The mains-powered RICOH Portable Monitor 150 can be easily handed to customers or colleagues for a more personal, engaging sharing meeting experience.
- Mains powered
- 560g: ultra-lightweight - easy to carry, set up and use anywhere
- 15.6-inch OLED screen for high-quality, high contrast vivid images
- 10-point multi-touch touchscreen
The powerfully portable RICOH Portable Monitor 150 provides an accessible second screen experience that’s easy to carry, set up and use anytime, anywhere. At just 560g, it’s ultra-lightweight for such a large, high-quality, high-contrast 15.6-inch OLED panel.
This Portable Monitor offers value for both one-to-one meetings or larger groups, and for face-to-face or hybrid meeting formats, whether in or out of the office. Using the 10-point multi-touch touchscreen (with or without stylus), users can work collaboratively, quickly and clearly by highlighting text and graphics on shared content. And it’s all backed by the reassurance of quality, performance, and reliability of a trusted technology brand.
Read our case study and see how the RICOH Portable Monitors contributed to Mizuho Bank's transition from paper to digital data.
| Product Name | RICOH Portable Monitor 150 | |
|---|---|---|
| Energy efficiency |  | |
| Display panel | Display method | OLED (Organic Light Emitting Diode) |
| Maximum resolution | 1920 x 1080 | |
| Brightness (max)*1 | 300 nit (=cd/m2) | |
| Contrast | 1:100,000 | |
| Display colours | 8bit+2bit FRC (maximum number of colours: Approx. 1.07 billion colours) | |
| Panel size | 15.6 inches | |
| Refresh rate | 60Hz | |
| Colour gamut | DCI P3 100% | |
| Viewing angle | 85° or higher | |
| Response time | 1ms | |
| Blue light cut | Eye Care Display certified | |
| Number of simultaneous display units | 1 unit | |
| Touch panel | Protective glass | Toughened glass, AF (anti-fingerprint) coating |
| Detection method | Active electrostatic coupling method (AES2.0) | |
| 10-point multi-touch*2 | Supported (Windows®/ Android™) | |
| Interfaces | Back side | USB Type-C® 2 (External power supply/ DisplayPort™ signal input function supported) |
| Screen wireless communication method, Encryption | N/A | |
| Supported wireless LAN standard | N/A | |
| Audio | Built-in speaker | 1.5W x 2 |
| Power supply (external) | Input method | USB Power Delivery (USB Type-C® powered) |
| Input*3 | Max. 45W (5V/3A, 9V/3A, 15V/3A, 20V/2.25A) | |
| Output (power pass through)*4 | Max. 25W (5V/0.9A, 9V/0.77A, 15V/1.66A, 20V/1.25A) | |
| ON mode power consumption | 13 W or less | |
| Standby mode power consumption | 0.2 W or less | |
| Internal battery | Type | N/A |
| Capacity | N/A | |
| Charging time | N/A | |
| Operating time (when fully charged) | N/A | |
| Environment | Operating temperature | 0~35°C |
| Operating humidity | 10-80% (without condensation) | |
| Continuous operating time | 20 hours*5 | |
| Weight (main unit only) | 1.23lb (560g) | |
| Dimensions (main unit only) | 356.0 x 10.8 x 221.7mm (thinnest part: 4.8mm) | |
| Screen installation angle | Landscape orientation | Free stop (Approx. 75–16°), Recommended angle for writing: Approx. 16° |
| Portrait orientation | Approx. 70° | |
| Certification supported Certificates | | |
| Main unit warranty period | 3 years Advance Exchange Service | |
*1The brightness varies depending on the input mode video adjustment settings, etc. Brightness will also deteriorate over time. It does not maintain a constant brightness.
*2Touch-and-handwriting features and display accuracy are essentially dependent on the handling of OS or each application.
*3If the input power is insufficient according to the specifications of this unit, the operation may become unstable.
*4Depending on PC or smartphone specifications, pass-through may not be possible or there may be restrictions on the operation of the unit.
*5Due to the nature of organic EL, there is a possibility that an afterimage may remain on the display when a still image or still character is displayed for a long time. This product is not designed for continuous operation of more than 20 hours. Use of the product beyond the specifications of continuous operation time may shorten the life of the main unit. It is not guaranteed that it will connect to all PCs and smartphones.
Package contents
- RICOH Portable Monitor 150
- 1 x USB Type-C® cable
- 4 x Cable clamps
- Sleeve case
- Warranty card
- Read This First
- Quick Guide
