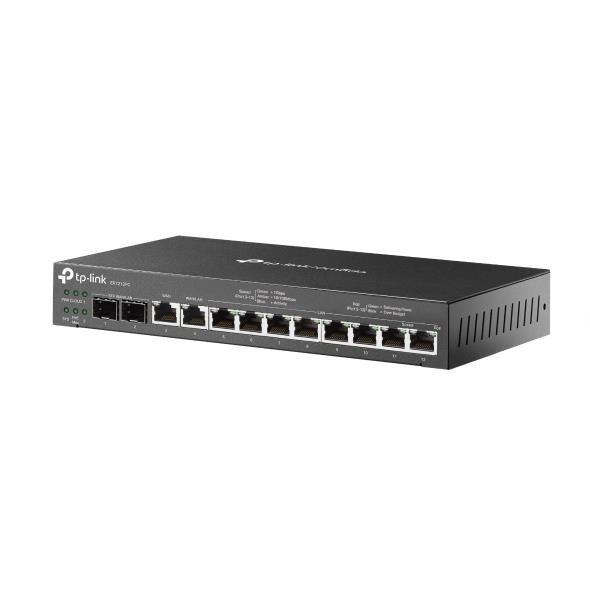

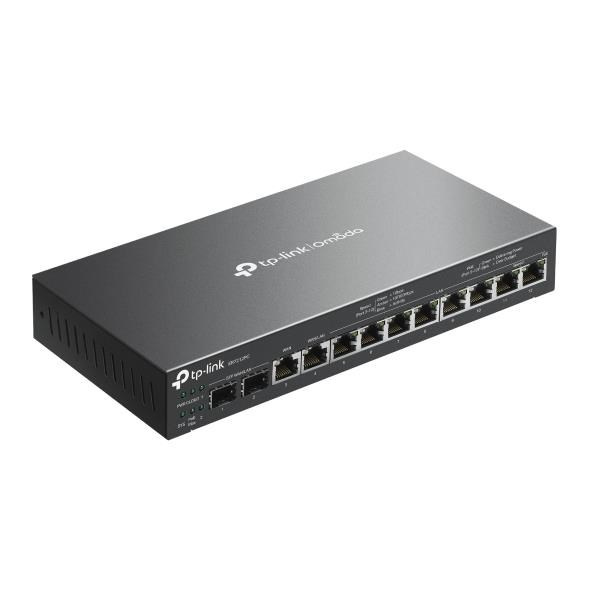

TP-Link ER7212PC OMADA 3v1 VPN router (2xSFP WAN/LAN,1xGbEWAN,1xGbELAN/WAN,8xGbELAN,8xPoE+,110W,fanless)
Popis a parametry
TP-Link ER7212PC OMADA 3v1 VPN router (2xSFP WAN/LAN,1xGbEWAN,1xGbELAN/WAN,8xGbELAN,8xPoE+,110W,fanless)
TP-Link ER7212PC
Gigabitový VPN router Omada 3 v 1
- Router 3 v 1: Plní funkci routeru, PoE switche a kontroleru Omada.
- Profesionální hardware: Dvoujádrový procesor 1,2 GHz s 1 GB paměti DDR3 zajišťuje více než dostatek výkonu až pro 12 gigabitových portů.
- Až 4 ethernetové porty WAN: 2 gigabitové porty SFP WAN/LAN, 1 gigabitový port RJ45 WAN a 1 gigabitový port RJ45 WAN/LAN.
- PoE s výstupním napájením 110 W: 8 portů PoE+ RJ45 LAN odpovídajících standardu 802.3at/af s celkovým výstupním napájením 110 W.
- Centralizovaná správa: Cloudový přístup a aplikace Omada pro pohodlnou a snadnou správu.
- VPN s vysokým zabezpečením: Podporuje připojení IPsec VPN, OpenVPN a L2TP/PPTP VPN.
- Snadná instalace: Kompaktní provedení bez ventilátoru pro umístění na stůl nebo montáž na stěnu.
Více informací o Omada Cloud SDN>?
Stránky produktu: https://www.tp-link.com/cz/business-networking/vpn-router/er7212pc/
Technické specifikace
| HARDWARE FEATURES | |
| Standards and Protocols | • IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE 802.3x, IEEE 802.1q • TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, SNMP |
| Interface | • 2 Gigabit SFP WAN/LAN ports • 1 Gigabit WAN port • 1 Gigabit LAN/WAN port • 8 Gigabit LAN ports |
| Network Media | • 10BASE-T: UTP category 3, 4, 5 cable (Max 100 m) EIA/TIA-568 100Ohm STP (Max 100 m) • 100BASE-TX: UTP category 5, 5e cable (Max 100 m) EIA/TIA-568 100Ohm STP (Max 100 m) • 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100 m) |
| Fan Quantity | Fanless |
| Button | Reset Button |
| Power Supply | 53.5VDC/2.43A Adapter |
| PoE Budget | 8 ports PoE+ output, 110 W PoE Budget |
| Flash | 8Mb Nor + 4 GB EMMC |
| DRAM | 1 GB DDR3 |
| Dimensions (WxDxH) | 8.9 × 5.2 × 1.4 in (226 × 131 × 35 mm) |
| Protection | 4 kV surge protection |
| Enclosure | Steel |
| Mounting | Desktop/Wall-mount |
| PERFORMANCE | |
| Concurrent Session | 24,980 |
| New Sessions /Second | 1,900 |
| NAT (Static IP) | 935.5 Mbps / 942.1 Mbps |
| NAT(DHCP) | 940.2 Mbps / 941.7 Mbps |
| NAT(PPPoE) | 913.1 Mbps / 935.2 Mbps |
| NAT (L2TP) | 545.0 Mbps / 912.7 Mbps |
| NAT (PPTP) | 523.0 Mbps / 912.8 Mbps |
| IPsec VPN Throughput (AES256) | 168.5 Mbps |
| OpenVPN | 34 Mbps |
| L2TP VPN Throughput | • Unencrypted: 845.3 Mbps • Encrypted: 333.2 Mbps |
| PPTP VPN Throughput | • Unencrypted: 1012.6 Mbps • Encrypted: 401.4 Mbps |
| 66 Byte Packet forwarding rate | 154,069 pps / 156,977 pps |
| 1,518 Byte Packet forwarding rate | 81,193 pps / 81,193 pps |
| BASIC FUNCTIONS | |
| WAN Connection Type | • Static IP • Dynamic IP • PPPoE • PPTP • L2TP |
| DHCP | • DHCP Server • DHCP Address Reservation • Multi-IP Interfaces • Multi-Net DHCP |
| IPv6 | support |
| VLAN | 802.1Q VLAN |
| IPTV | IGMP v2/v3 Proxy |
| ADVANCED FUNCTIONS | |
| Advanced Routing | • Static Routing • Policy Routing |
| Bandwidth Control | IP/Port-based Bandwidth Control |
| Load Balance | • Intelligent Load Balance • Application Optimized Routing • Link Backup • Online Detection |
| NAT | • Multi-Net NAT • Virtual Server • NAT-DMZ • FTP/H.323/SIP/IPSec/PPTP ALG • UPnP |
| Session Limit | IP-based Session Limit |
| VPN | |
| IPsec VPN | • 20 IPSec VPN Tunnels • LAN-to-LAN, Client-to-LAN • Main, Aggressive Negotiation Mode • AES128, AES192, AES256 Encryption Algorithm • IKE v1/v2 • SHA1, SHA2 Authentication Algorithm • NAT Traversal (NAT-T) • Dead Peer Detection (DPD) • Perfect Forward Secrecy (PFS) |
| PPTP VPN | • PPTP VPN Server • PPTP VPN Client (10) • 16 Tunnels • PPTP with MPPE Encryption |
| L2TP VPN | • L2TP VPN Server • L2TP VPN Client (10) • 16 Tunnels • L2TP over IPSec |
| OpenVPN | • OpenVPN Server • OpenVPN Client (10) • 16 OpenVPN Tunnels |
| SECURITY | |
| Filtering | URL Filtering |
| Attack Defense | • TCP/UDP/ICMP Flood Defense • Block TCP Scan (Stealth FIN/Xmas/Null) • Block Ping from WAN |
| Access Control | Source/Destination IP Based Access Control |
| AUTHENTICATION | |
| Web Authentication | • No Authentication • Simple Password • Hotspot (Local User / Voucher / SMS / Radius) • External Radius Sever • External Portal Sever |
| MANAGEMENT | |
| Omada App | Yes |
| Cloud Access | Yes |
| Service | Dynamic DNS (Dyndns, No-IP) |
| Maintenance | • Web Management Interface • Remote Management • Export & Import Configuration • SNMP v1/v2c/v3 • Syslog Support |
| Management Features | • Automatic Device Discovery • Intelligent Network Monitoring • Abnormal Event Warnings • Unified Configuration • Reboot Schedule • Captive Portal Configuration • Management up to 1 Router, 2 Switches and 10 EAPs |
| OTHERS | |
| Certification | CE, FCC, RoHS |
| Package Contents | • ER7212PC • Power Adapter • Power Cord • Quick Installation Guide |
| System Requirements | • Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10 • MAC OS, NetWare, UNIX or Linux |
| Environment | • Operating Temperature: 0 °C to 45 °C (32 °F to 113 °F) • Storage Temperature: -40 °C to 70 °C (-40 °F to 158 °F) • Operating Humidity: 10% to 90% non-condensing • Storage Humidity: 5% to 90% non-condensing |
.
ParametryPorovnání
Gigabit ethernet
Ano
Další vlastnosti
FTP server
Další vlastnosti
PoE (Power over ethernet)
Další vlastnosti
Firewall
Další vlastnosti
Podpora IPv6
Další vlastnosti
VLAN
Další vlastnosti
Management
Funkce
VPN
Funkce
Router
Počet SFP portů
2
Počet SFP portů
2
