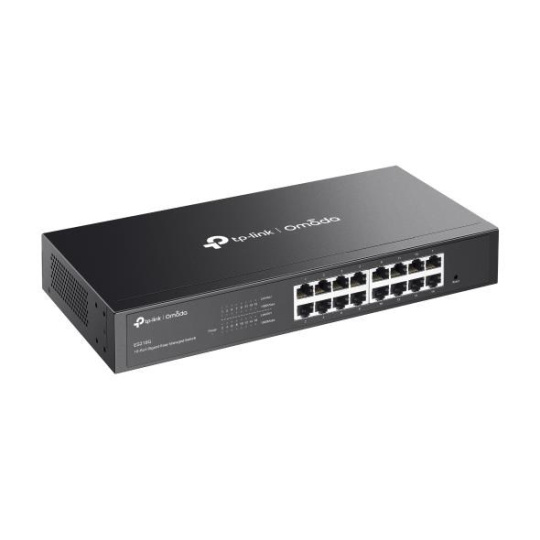

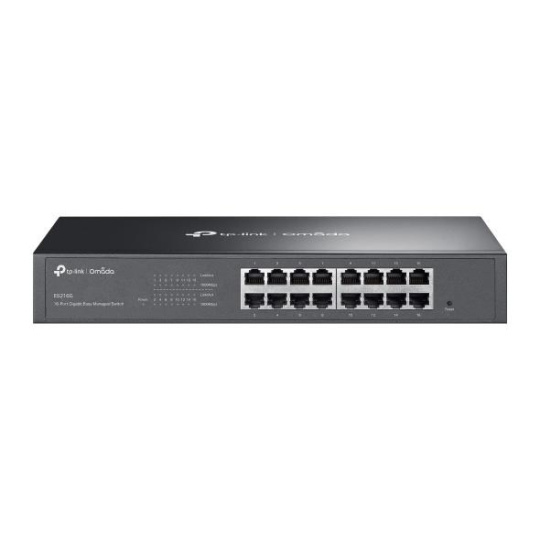

TP-Link OMADA switch ES216G (16xGbE,fanless)
Popis a parametry
TP-Link OMADA switch ES216G (16xGbE,fanless)
TP-Link OMADA switch ES216G
Omada 16portový gigabitový easy managed switch
- 16× 10/100/1000Mb/s RJ45 portů
- Snadné použití: Podporuje plug-and-play pro okamžité připojení a jednoduchou konfiguraci dalších funkcí
- Centralizovaná správa cloudu prostřednictvím webu nebo aplikace Omada†
- VLAN, izolace portů, test kabelů?, QoS? pro spolehlivé dohledové sítě
- Automatická prevence smyček a IGMP Snooping
- Konstrukce bez ventilátorů pro tichý provoz
- Odolný kovový kryt a konstrukce pro montáž na stůl/rack
Stránky produktu: https://www.tp-link.com/cz/business-networking/omada-switch-agile/es216g/
Technické specifikace
| HARDWARE FEATURES | |
| Interface | • 16× 10/100/1000 Mbps RJ45 Ports • Auto-Negotiation/Auto MDI/MDIX |
| Fan Quantity | Fanless |
| Installation | • Desktop • Rackmountable |
| Physical Security Lock | ? |
| Power Supply | 100-240 V~50/60 Hz |
| Dimensions ( W x D x H ) | 11.6 × 5.5 × 1.7 in (294× 140 × 44 mm) |
| Surge Protection | ±6kV |
| PERFORMANCE | |
| Switching Capacity | 32 Gbps |
| Packet Forwarding Rate | 23.8 Mpps |
| MAC Address Table | 8K |
| Packet Buffer Memory | 4 Mbit |
| Jumbo Frame | 15 KB |
| SOFTWARE FEATURES | |
| Quality of Service | • Port-based/802.1p/DSCP QoS • 8 Priority Queues • Priority Schedule Mode - WRR (Weighted Round Robin) • Queue Weight Config • Bandwidth Control - Port-Based Rating Limit • Storm Control - Multiple Control Modes (kbps/pps) - Broadcast/Multicast/Unknown-Unicast Control? |
| L2 Features | • Static Link Aggregation • Loop Prevention / Loopback Detection • Flow Control - 802.3x Flow Control • Mirroring - Port Mirroring - One-to-One - Many-to-One - Ingress/Egress/Both • Port Statistics - Port Mirror Status - Traffic Statistics • 802.1ab LLDP |
| L2 Multicast | • IGMP Snooping - IGMP v1/v2/v3 Snooping - Fast Leave |
| VLAN | • MTU VLAN • Port-Based VLAN • 802.1Q Tag VLAN - Max 32 VLAN Groups - 4K VID |
| Transmission Method | Store-And-Forward |
| Management Features | |
| Omada App | Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| Centralized Management | • Omada Cloud-Based Controller • Omada Hardware Controller • Omada Software Controller |
| Cloud Access | Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| Zero-Touch Provisioning | Yes. Requires the use of Omada Cloud-Based Controller |
| Management Features | • Web-based GUI • DHCP Client • Cable Diagnostics • Automatic Device Discovery† • Batch Configuration† • Batch Firmware Upgrading† • Unified Configuration† |
| OTHERS | |
| Certification | FCC, CE, RoHS |
| Package Content | • ES216G • Power Cord • Rubber Feet • Mounting Brackets • Screws • Installation Guide |
| Environment | • Operating Temperature: -5?~50? (23?~122?) • Storage Temperature: -40?~70? (-40?~158?) • Operating Humidity: 10%~90% non-condensing • Storage Humidity: 5%~90% non-condensing |
ParametryPorovnání
Provedení
Desktop
Provedení
Rack mounted 19"
Technologie
Gigabit Ethernet 1000Mbps
Management
Web
Ventilátor
Ne
Funkce
VLAN (virtual local area network)
Funkce
QoS (Quality of service)
Funkce
DHCP snooping
Funkce
L2
Funkce
Web management/Smart switch
Počet portů LAN
16
Maximální počet portů
16
